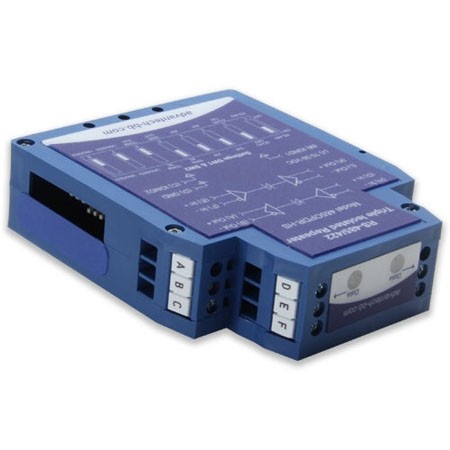

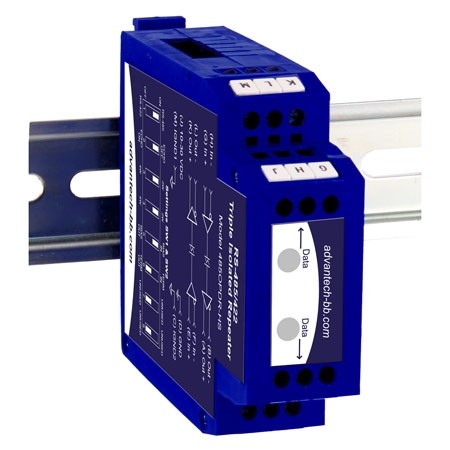

Model BB-485OPDR-HS is a high speed, optically isolated RS-422/485 repeater that supports data rates up to 1.5 Mbps, making it suitable for use in fieldbus systems such as Profibus. Isolation - Model BB-485OPDR-HS provides 2 kV digital isolation with 8 kV air ESD protection and 600 W transient voltage suppression on the data lines. Range Extension - Model BB-485OPDR-HS can be used to extend the range of a network up to 1.2 km (4000 ft), depending on data rates, and to add additional nodes. 2-wire RS-485, 4-wire RS-485 and RS-422 are supported. Data signals and the power inputs connect to built-in terminal blocks. Power - The repeater operates on externally sourced 10 to 30 VDC power (power supply is required, not included, sold separately). Enclosure - The enclosure has a DIN rail mount enclosure that is designed to easily fit on standard 35mm DIN rail.
- Additional Information
-
Additional Information
Features Extends RS-422/RS-485 an extra 1.2 km (4000 ft) • 2 kV isolation, IEC ESD protections • Data rate: 1.5 Mbps • -40 to +80°C wide operating temperature • DIN rail mount (panel mount with optional brackets) • Suitable for fieldbus systems such as Profibus • Power supply required, not included, sold separately
Packing List BB-MDR-20-24 - DIN rail mount power supply, 24VDC, 1.0 A output power BB-MDR-40-24 - DIN rail mount power supply, 24VDC, 1.7 A output power Ordering Information BB-485OPDR-HS Diamensions 2.5 x 7.9 x 9.5 cm (1.0 x 3.1 x 3.8 in) - Reviews
-
