- Description
-
Details

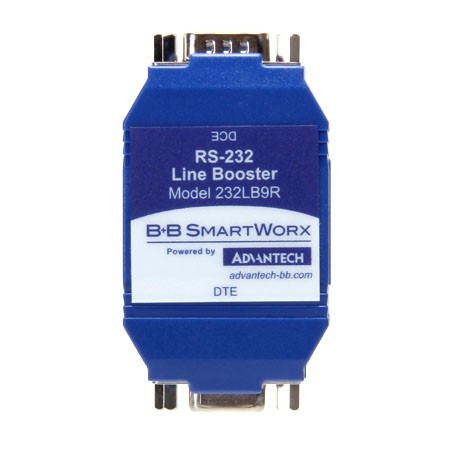

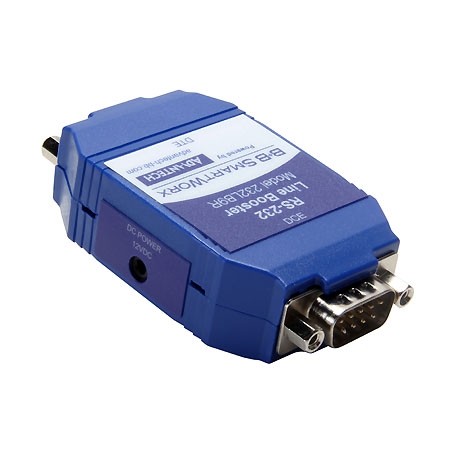

The 232LB9R is a 9-pin RS-232 repeater that re-transmits all 8 signals and carries the ground line through. Many computers, laptops and some desktops ship with low-power versions of RS-232 ports that are unable to drive port-powered devices or full-length RS-232 cabling. The 232LB9R can amplify these weak signals up to the RS-232 Standard for uses such as running port powered devices. It is also ideal for extending full-powered RS-232 cable runs beyond the typical 15 to 30 meters (50 to 100 feet) distance. An external power supply is required (not included, sold separately). - Additional Information
-
Additional Information
Features + Amplify and extend RS-232 signals beyond 15.24m (50 ft) limit + Daisy-chain multiple repeaters for even extra range + Boost lower power RS-232 ports + Data rates up to 115.2 kbps + Quick, convenient in-line installation + Power supply required (not included, sold separately)
Packing List BB-SMi6-12V-P230C1 - power supply, 12 VDC, 6 W, 2.5mm plug, int’l. AC input BB-9PAMF6 - DB9 male to female cable, 1.83 m (6 ft) Ordering Information BB-232LB9R R Diamensions 7.9 x 4.3 x 2.1 cm - Reviews
-
