- Description
-
Details

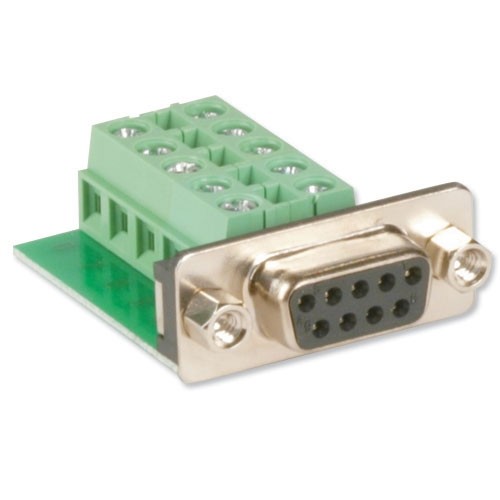

BB-DGB9FT is a convenient way to perform field termination of DB9 cables. Separate connection points are provided for all 9 positions of the connector plus GND. Terminal block design with set screws provides reliable electrical connections. Terminal block area is marked for fool-proof termination. - Additional Information
-
Additional Information
Features Easy, reliable field termination of DB9 cables + 9 separate connection points (DB9 connector) + Labeled terminal block with set screws + Voltage rating: 1000 Vac, 500 Vdc + Current rating: 3 Amps Packing List No Ordering Information BB-DGB9FT Diamensions 31.0 x 38.1 x 12.5 mm - Reviews
-
- Data Sheet
-
