- Description
-
Details

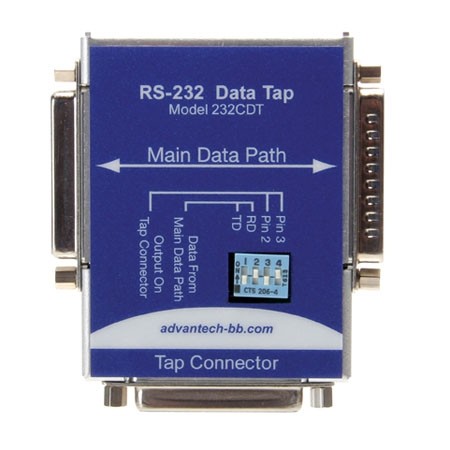

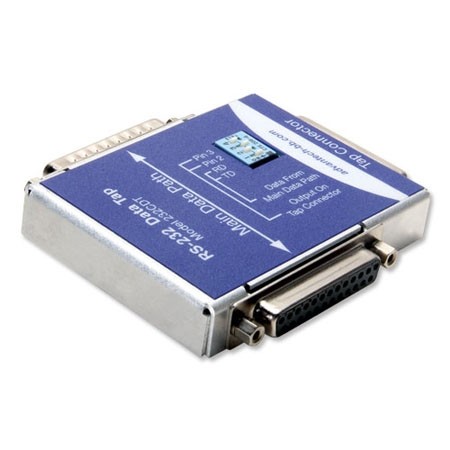

Model BB-232CDT has DIP switches that allow you to monitor the main Transmit and Receive lines individually or together. The male RS-232 connector on the top and the female RS-232 connector on the bottom are connected straight through, pin for pin. These connectors are used to connect the device – in series – with the RS-232 line to be tapped. - Additional Information
-
Additional Information
Features Monitor and record serial data streams Easy to install, may be left in place Transparent connections No external power required Packing List BB-9PAMF6 - DB9 male to DB9 female cable, 1.8 m (6 ft) BB-232AMF5 - DB25 male to DB25 female cable, 1.8 m (6 ft) Ordering Information BB-9PCDT BB-232CDT Diamensions No - Reviews
-
