- Description
-
Details

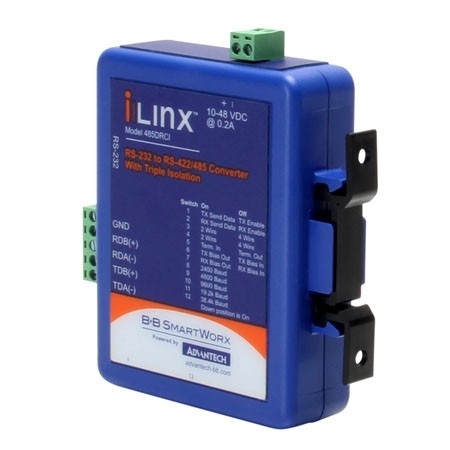

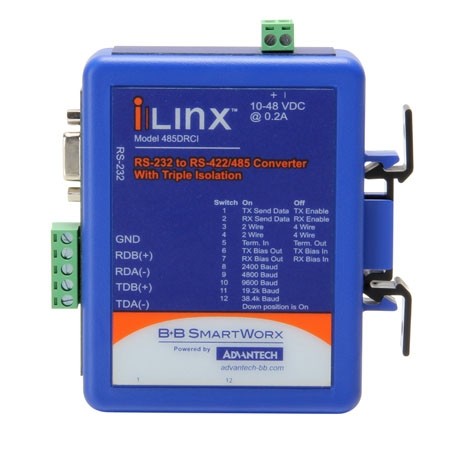

BB-485DRCi converts RS232 to RS422 for greater range or to RS485 for greater range and multi-drop. RS422/485 line surge suppression. DIP switch configuration. Automatic Send Data Control – no software control of handshake signals in RS485 mode. Removable TBs for power and RS422/485 signals.
- Additional Information
-
Additional Information
Features Converts RS-232 signals to RS-422/RS-485 • Three-way 2,000V optical isolation (input, output, power) • Data rates up to 115.2 kbps • Wide operating temperature: -40 to +80 °C • DIN rail mountable • UL Class 1/Division 2 • Modbus ASCII/RTU, Allen-Bradley® DH-485 compatible • 10–48 VDC input power range (power supply required, not included, sold separately)
Packing List BB-MDR-20-24 – DIN rail mount power supply 24VDC, 1.0 A output power BB-EK-CLIP-MPC – Replacement DIN rail clip BB-TBKT1 – Replacement Terminal Block, 2-position 5.08mm, 8A, 30 BB-TBKT2 – Replacement Terminal Block, 5-position 5.08mm, 8A, 30 BB-31D1-28100 – Null Modem Adapter (Allen-Bradley® applications) Ordering Information BB-485DRCi Diamensions 11.4 x 3.3 x 12.4 cm - Reviews
-
- Data Sheet
-
