Details

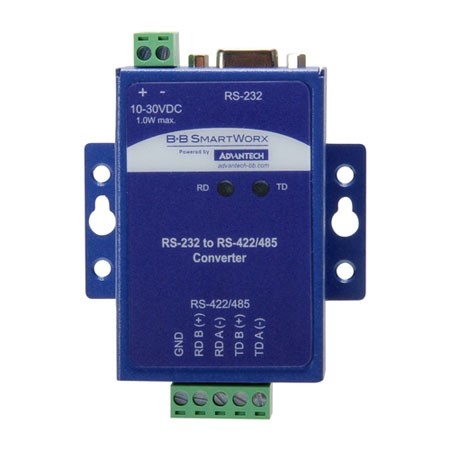

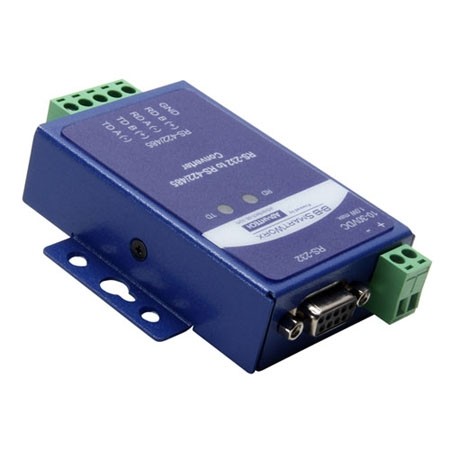

Model SCP211-DFTB3 serial converter is compact and rugged, designed and tested to meet heavy industrial EMC standards. The RS-232 signal is connected through a female DB9 connector. The RS-422/485 (2-wire and 4-wire) signal is connected through a removable terminal block, making wiring easy. Power is connected through a two-position, removable terminal block. A 10-30VDC external power source is required (not included, sold separately). Bit-wise enabled circuitry automatically detects the character time-out eliminating the need to set DIP switches for the baud rate. Model SCP211-DFTB3 is non-isolated and made for less demanding temperature extremes. This model can be used when isolation is not required, such as applications in which the data line does not exit the control cabinet.
- Additional Information
-
Additional Information
Features Convert RS-232 data signals to RS-422/485 • 2kV optical isolation (Model# BB-SCP311T-DFTB3) • ESD protection - 8 kV contact, 15 kV air • Data rate: up to 460.8 kbps (bit-wise enable) • -40 to +80 °C wide operating temperature (Model# BB-SCP311T-DFTB3) • Rugged metal panel mount case (DIN rail adapters sold separately) • 10-30 VDC external power source (not included, sold separately) • UL Listed
Packing List BB-MDR-40-24 - Power Supply, 24VDC, 40W, 1.7A output power, DIN rail mount
BB-SMI6-12-V-ST - Power Supply, 12VDC, 6W, 500mA, international AC input & blades, stripped/tinned
BB-DRAD35 - DIN rail mounting clips, 35 mm BB-TBKT1 - Replacement terminal block - 2-position, 5.08mm, 8A, 300V
BB-TBKT2 - Replacement terminal block - 5-position, 5.08mm, 8A, 300V
BB-9PAMF6 - RS-232 serial cable, DB9 male to DB9 female, 1.8 m
Ordering Information BB-SCP211-DFTB3
BB-SCP311T-DFTB3
Diamensions 99.1 x 22.9 x 73.7 mm - Reviews
-
