Details

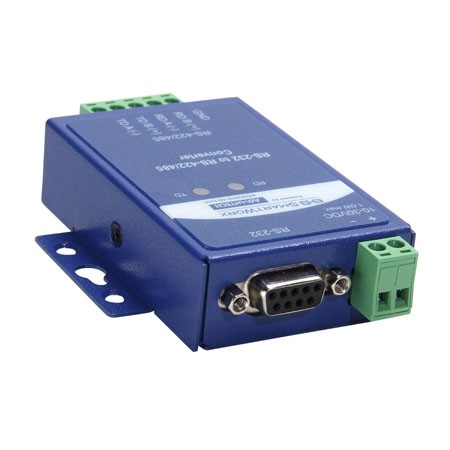

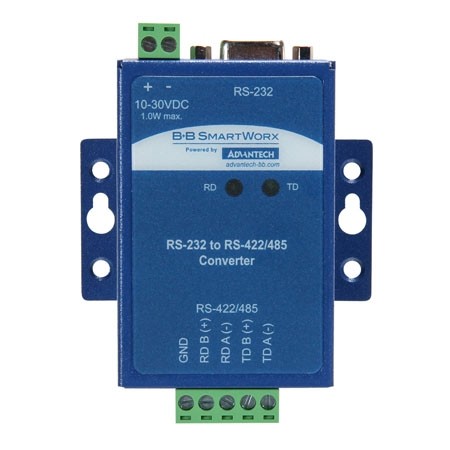

Model SCP311T-DFTB3 serial converter is compact and rugged, designed and tested to meet heavy industrial EMC standards. The RS-232 signal is connected through a female DB9 connector. The RS-422/485 (2-wire and 4-wire) signal is connected through a removable terminal block, making wiring easy. Power is connected through a two-position, removable terminal block. A 10-30VDC external power source is required (not included, sold separately). Bit-wise enabled circuitry automatically detects the character time-out eliminating the need to set DIP switches for the baud rate.Model SCP311T-DFTB3 offers 2 kV isolation plus a -40 to 80°C wide operating temperature. This rugged model is an excellent investment for protecting your expensive control equipment.
- Additional Information
-
Additional Information
Features • Convert RS-232 data signals to RS-422/485 • 2kV optical isolation (Model# BB-SCP311T-DFTB3) • ESD protection - 8 kV contact, 15 kV air • Data rate: up to 460.8 kbps (bit-wise enable) • -40 to +80 °C wide operating temperature (Model# BB-SCP311T-DFTB3) • Rugged metal panel mount case (DIN rail adapters sold separately) • 10-30 VDC external power source (not included, sold separately) • UL Listed
Packing List BB-MDR-40-24 - Power Supply, 24VDC, 40W, 1.7A output power, DIN rail mount
BB-SMI6-12-V-ST - Power Supply, 12VDC, 6W, 500mA, international AC input & blades, stripped/tinned
BB-DRAD35 - DIN rail mounting clips, 35 mm BB-TBKT1 - Replacement terminal block - 2-position, 5.08mm, 8A, 300V BB-TBKT2 - Replacement terminal block - 5-position, 5.08mm, 8A, 300V
BB-9PAMF6 - RS-232 serial cable, DB9 male to DB9 female, 1.8 m
Ordering Information BB-SCP211-DFTB3 BB-SCP311T-DFTB3 Diamensions 99.1 x 22.9 x 73.7 mm - Reviews
-
