Details

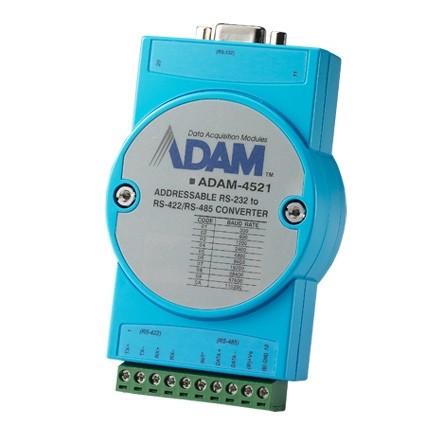

The ADAM-4521 is an intelligent RS-422/485 to RS-232 converter specifically designed to connect RS-422/485 devices to an RS-232 network. RS-232 is the most common transmission standard. Although widely available on most computer systems, measurement equipment, PLCs, and industrial devices, its transmission speed, communication distance, and especially networking capability are limited due to unbalanced transmission. The ADAM-4521 addressable converter solves this problem and lets you easily build up an RS-485 network with your RS-232 devices by assigning each one an address for easier communication.
- Additional Information
-
Additional Information
Features Connectors 1 x plug-in terminal block (#14 ~ 22 AWG) (RS-422/485) 1 x DB9-F (RS-232) Isolation Voltage 1,000 VDC Power Consumption 1.0 W @ 24 VDC Built-in microprocessor and watchdog timer
Serial Communications Input RS-485 (2-wire) or RS-422 (4-wire) Output RS-232 (DB9) Speed Modes (bps) 300, 600, 1,200, 2,400, 4,800, 9,600, 19.2 k, 38.4 k, 57.6 k, 115.2 k (software configurable)Packing List No Ordering Information ADAM-4510 RS-422/485 Repeater ADAM-4510S Isolated RS-422/485 Repeater ADAM-4520 Isolated RS-232 to RS-422/485 Converter ADAM-4521 Addressable RS-422/485 to RS-232 Converter
Diamensions No - Reviews
-
