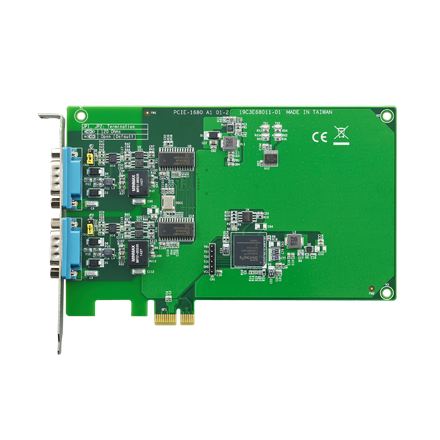

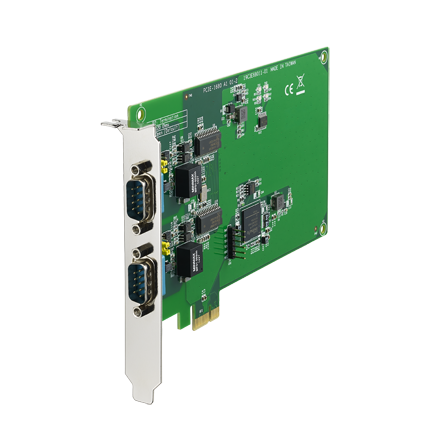

2-Port CAN-Bus PCIe Card with Isolation

2-Port CAN-Bus PCIe Card with Isolation

More Views

2-Port CAN-Bus PCIe Card with Isolation
Part Nubber: PCIE-1680
₹30,500.00

  • PCIe bus specification 1.2 compliant

  • Operates two separate CAN networks at the same time

  • High speed transmission up to 1 Mbps

  • 16 MHz CAN controller frequency

  • Optical isolation protection of 2,500 VDC ensures system reliability

  • Windows DLL library and examples included

  • Supports Windows CE5/CE6/XP/7/8.1/10 drivers and utilities

  • Supports Linux 2.4.xx / 2.6.xx; Intel x86 hardware platform

OR
Description

Details

The PCIE-1680 is a special purpose communication card that offers connectivity to Controller Area Networks (CAN) on your PC. With its built-in CAN controllers, the PCIE-1680 provides bus arbitration and error detection with an automatic transmission repetition. This drastically reduces the chance of data loss and ensures system reliability.You can run both CAN controllers independently at the same time. The PCIE-1680 operates at baud rates up to 1 Mbps.
Additional Information

Additional Information

Features

PCIe bus specification 1.1 compliant ƒ 2 x Independent CAN ports ƒ Up to 1 Mbps transmission speeds ƒ 16 MHz CAN controller frequency ƒ Optical isolation protection of 2,500 VDC ƒ I/O address automatically assigned by PCI PnP ƒ Transmit/Receive status LED indicators ƒ Windows DLL library and examples included ƒ Supports Windows CE5/CE6/XP/7/8.1/10 drivers and utilities ƒ Supports Linux 2.4.xx/2.6.xx, QNX 6.5, and Intel® x86 architecture
Packing List OPT1-DB9E-AE DB9 to 10-pin wiring board
Ordering Information PCIE-1680-AE 2-port CAN bus PCIE card with isolation protection ƒ PCI-1680U-BE 2-port CAN bus PCI card with isolation protection
Diamensions 168 x 111 mm (6.6" x 4.4")
