2U Rackmount Network Appliances

2U Rackmount Network Appliances

More Views

2U Rackmount Network Appliances
Part Nubber: FWA-6170
₹0.00

  • 2 x Intel® Xeon® Scalable Processors Platinum 8100, Gold 6100 & 5100, Silver 4100 and Bronze 3100

  • 24 x DDR4 2133/2400/2666 ECC registered memory up to 1536GB

  • C626 PCH, 40Gb/s QAT support

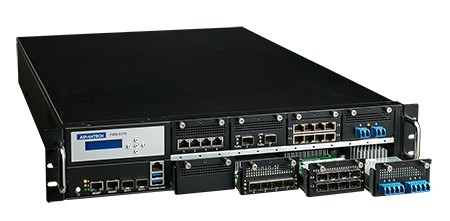

  • 8 x NMC (Network Mezzanine Card) slots for a wide range of GbE, 10GbE, 40GbE and 100GbE NMCs with or without Advanced LAN bypass. Optional support 4 x HDD kit (for 2.5" HDD) on the top NMC slots

  • 2 x internal PCIe x8 slots support for low-profile add-on cards

  • 2 x 2.5" removable external SATA HDDs/SSDs

  • 2 x M.2 2280 SSD

  • IPMI 2.0 compliant Remote Management

OR
Description

Details

2U Rackmount Network Appliance with Intel® Xeon® Processor Scalable Family, up to 8 NMC slots
Additional Information

Additional Information

Features 2 x Intel® Xeon® Scalable Processors Platinum 8100, Gold 6100 & 5100, Silver 4100 and Bronze 3100 24 x DDR4 2133/2400/2666 ECC registered memory up to 1536GB C626 PCH, 40Gb/s QAT support 8 x NMC (Network Mezzanine Card) slots for a wide range of GbE, 10GbE, 40GbE and 100GbE NMCs with or without Advanced LAN bypass. Optional support 4 x HDD kit (for 2.5" HDD) on the top NMC slots 2 x internal PCIe x8 slots support for low-profile add-on cards 2 x 2.5" removable external SATA HDDs/SSDs 2 x M.2 2280 SSD IPMI 2.0 compliant Remote Management
Packing List 1700020691-01 Console cable D-SUB9P(F)/RJ45 220 cm
Ordering Information 1702002600
Diamensions 438 x 88 x 684.15 mm (17.24 x 3.46 x 26.93 inch)
