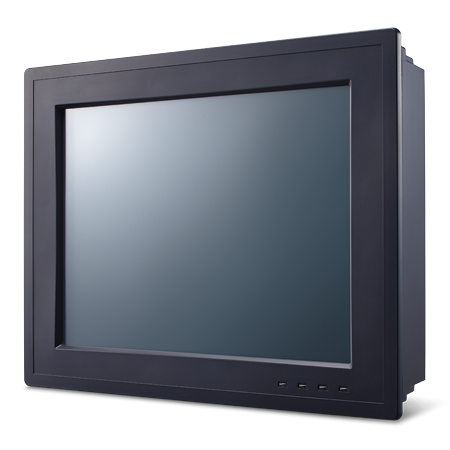

10.4" ATOM Fanless Panel PC

Processor System

CPU

Intel® AtomTM D2550, Dual core

Frequency

1.86 GHz

2nd Cache

1 MB

Chipset

NM10

Memory

1 x SO-DIMM, DDR3, Max 4 GB

Storage

1 x 2.5" SATA Bay 1 x mSATA Bay

Network (LAN)

2 x 10/100/1000 Mbps Ethernet

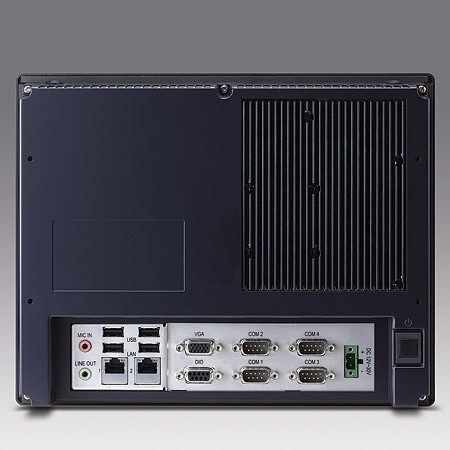

I/O ports

4 x Serial ports: 3 x RS-232, 1x RS-232/422/485 (Adjustable through BIOS) 4 x USB 2.0
1 x Line-out, 1x MIC-in
1 x DB15 VGA

1 x DB9 GPIO port (8 pin programmable)

Expansion

1 x Mini PCIe

Watchdog Timer

255 timer levels, set up by software

Speaker

2 x 3W

Physical Characteristics

Dimensions

275 x 220 x 64.3 mm (10.83" x 8.74" x 2.53")

Weight

2.5 kg (5.51 lb)

OS Support

OS Support

Microsoft® Windows XPE / Windows XP Pro / WES7 32bit / WEC7 / Windows 7 32bit / Linux

Power Consumption

Input Voltage

12- 30 Vdc

Power Consumption

25 W (Burn-in test 7.0 in Windows 7 32bit) 22 W (Burn-in test 7.0 in Windows XP 32bit)

LCD Display

Display Type

10.4" TFT LED Panel (LED Backlight)

Max. Resolution

800 x 600

Viewing Angle

80 (left), 80 (right), 70 (up), 70 (down)

Luminance (cd/m2)

400

Contrast Ratio

700

Backlight Lifetime

30,000 hrs (typical)

Touchscreen

Touch Type

Analog Resistive 5-wire

Light Transmission

81+/-3%

Controller

RS-232 interface

Durability (Touches)

36 million
