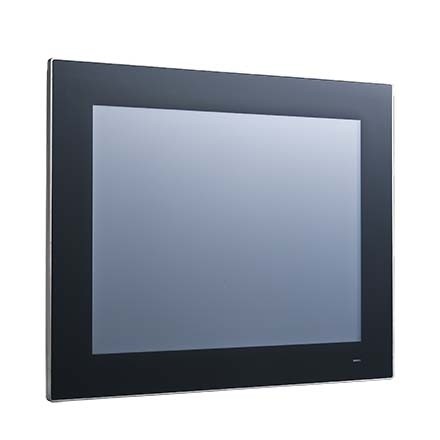

15" Celeron Fanless Panel PC

System

CPU

Intel® Celeron® N2930 quad core

Frequency

1.83 GHz

L2 Cache

2 MB

Memory

1 x SODIMM DDR3L 1333 MHz (max. 8 GB)

Storage

1 x 2.5" SATA bay (optional; requires a bracket module for installation) 1 x mSATA bay (default)

Network (LAN)

2 x 10/100/1000 Mbps Ethernet (Intel I211-AT)

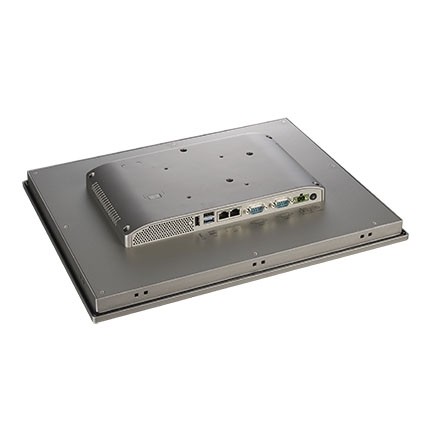

I/O

2 x Serial ports: 1 x RS-232, 1x RS-232/422/485 (Adjustable through BIOS) 2 x USB 2.0, 1 x USB 3.0

Expansion

1 x Full-size mini PCIe slot

Watchdog Timer

255 timer levels, set up by software

Physical Characteristics

Dimensions

391.36 x 312.46 x 51.5 mm (15.4 x 12.3 x 2.0 in)

Weight

4 kg (8.8Ib)

OS Support

OS Support

Microsoft® Windows 7/8.1/10 (32/64-bit), WES7, WEC7, Linux, Android 4.4

Power Consumption

Input Voltage

12 ~ 24 VDC

Power Consumption

20W (Burn-in test 7.0 in Windows 7, 32-bit)

LCD

Display Type

15" TFT LCD (LED backlight)

Resolution

1024 x 768

Viewing Angle

80 (left), 80 (right), 70 (up), 70 (down)

Luminance (cd/m2)

400

Contrast Ratio

700

Backlight Lifetime

50,000 hr

Touchscreen

Touch Type

5-wire resistive touch

Light Transmission

80±5% at 550 nm wavelength

Controller

RS232 interface

Durability (Touches)

36 million

Environment

Operating Temperature

0 ~ 50 °C (32 ~ 122 °F) with SSD
0 ~ 40 °C (32 ~ 104 °F) with HDD (with the HDD temperature more than or equal to 65 °C)

Storage Temperature

-40 ~ 60 °C (-40 ~ 140 °F)

Relative Humidity

10 ~ 95% @ 40 °C (non-condensing)

Shock

Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27

Vibration

Operating Random Vibration Test 5 ~ 500Hz, 1Grms @with HDD; 2Grms @with SSD, follow IEC 60068-2-64

EMC

CE, FCC Class B, BSMI

Safety

CB, CCC, BSMI, UL

Front Panel Protection

IP65 compliant
