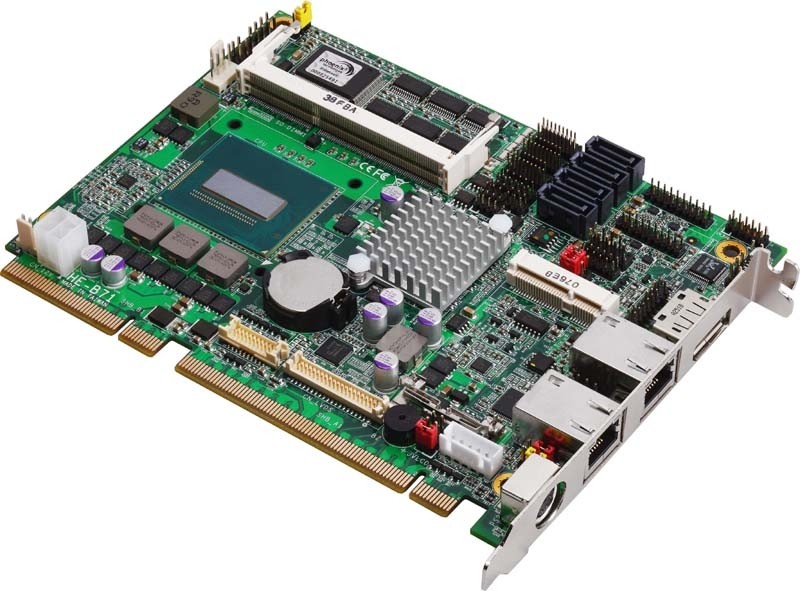

Half-size / PICMG 1.3 SBC support 4th generation Intel® Core™ i7 / i5 / i3 and Celeron CPU

• CPU: Intel® 4^th generation Core™ i7/ i5/ i3/ and Celeron™ Mobile Processor

• Memory: Two DDR3L 1333/1600 MHz up to 16 GB

• Chipset: Mobile Intel® QM87 Express chipset

• Display port interface: Onboard Display port connector

• LVDS interface: onboard 24-bit dual channel LVDS interface

• CRT Interface: Onboard 2x8 pin-header

• DVI interface: Onboard 20-pin DVI interface

• LAN Interface: 1 x Intel® I210-AT Gigabit LAN and 1 x Intel® I217-LM Gigabit LAN (Support iAMT9.0)

• Serial ATA: Support 4 x  Serial ATA III

• Audio: Realtek ALC888 High Definition Audio.

• I/O ports: 5 x RS232 and 1 x RS232/422/485 Serial Ports, 4 x USB3.0 ports,

                          2 x USB2.0 ports

• Extended interface: 1 x Mini-PCIe socket (Optional support mSATA, only for SATA3).

• GPIO interface: Onboard programmable 8-bit Digital I/O interface.
