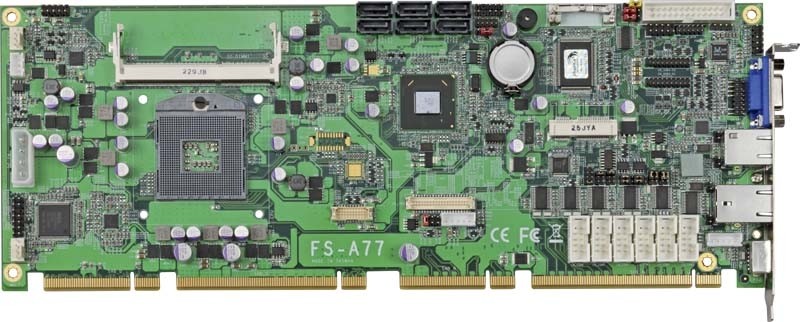

PICMG 1.3 Full-size CPU Card

CPU: Intel® 3^rd generation Core™ i7/ i5/ i3 & Celeron Mobile in the rPGA988B socket (support Intel® 2^nd generation Core™ i7/ i5/ i3/ Mobile in the rPGA988B socket)

Memory: Two DDR3 SO-DIMM 1006/1333/1600 MHz up to 16 GB

Chipset: Mobile Intel® QM77 Express chipset

Integrated Graphics: Intel® Core™ integrated HD Graphics 4000 Technology

VGA Interface: Onboard DSUB15 connector for VGA interface

LVDS interface: Onboard 24-bit dual channel LVDS interface

DVI interface: Onboard DVI interface

LAN Interface: 1 x Intel® 82574L Giga LAN and 1 x Intel® 82579LM Giga LAN(Support iAMT8.0).

Serial ATA: Support 6 x SATA ( 4 x serial ATAII, 2 x serial ATAIII )

Audio: Realtek ALC888 High Definition Audio.

I/O ports: 5 x RS232 and 1 x RS232/422/485 Serial Ports, 4 x USB2.0 ports, 4 x USB3.0 ports, 1 x DB15 VGA port, 1 x PS/2 keyboard and mouse ports, 1 x LPT

Extended interface: 1 x Mini-PCIe socket

GPIO interface: Onboard programmable 8-bit Digital I/O interface.

Expansion Interface: PICMG 1.3 Interface Support 1 PCI-Express x 16 and 1 PCI-Express x 4 or 4 PCI-Express x 1 、4 PCI bus master, and 4 USB2.0 Interface and 1x PCI-E mini card socket.
