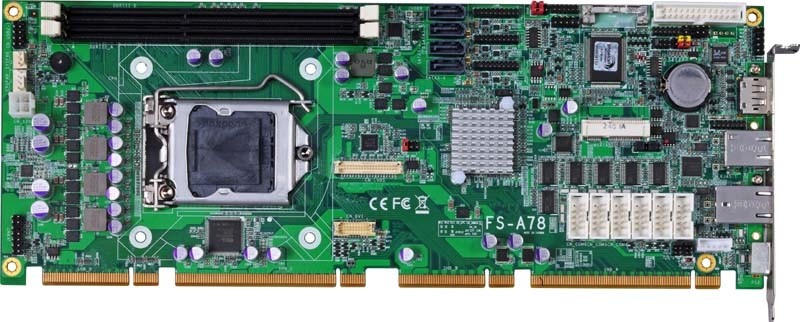

PICMG 1.3 SBC support 4th generation Intel® Core™ i7 / i5 / i3

Part Nubber: FS-A78

₹0.00

Support  4^th generation  Intel® Core^™ i7 / i5 / i3 / desktop CPU with

Intel® Q87 Express, DDR3/DDR3L up to 16GB.
 Onboard display port , VGA & DVI & LVDS,

2 x Giga LAN, 4 x USB 2.0.
6 x USB 3.0, 6 x COM, HD Audio.
 4 x SATAIIl with RAID, IrDA,

SMBUS,GPIO, 1 x Mini-PCIe

Qty:

Description

Details

CPU: Intel® 4^th generation Core™ i7/ i5/ i3/ Desktop in the FCLGA1150 socket
Memory: 2 x DDR3/DDR3L (support 1.5V) 1333/1600 DIMM up to 16 GB
Chipset: IntelR BD82Q87 PCH
Display Interface: Onboard display port & VGA & DVI & LVDS.
LAN Interface: 2 x Giga LAN.
Serial ATA: Support four SATA3 with RAID 0,1,5,10.
Audio: Intel® Q87 integrated with Realtek ALC888 High Definition Audio.
I/O ports: 5 x RS232 and 1 x RS232/422/485 Serial Ports, 4 x USB2.0 ports, 6 x USB3.0 ports, 1 x DB15 VGA port, 1 x PS/2 keyboard and mouse ports, Audio, SPDIF, LPT.
Extended interface: PICMG 1.3 Interface Support 1 PCI-Express x16 and 1 PCI-Express x4 or 4 PCI-Express x1, 4 PCI, mSATA (mSATA only Support SATAIII)
GPIO interface: Onboard programmable 8-bit Digital I/O interface
