Development Board

Development Board

More Views

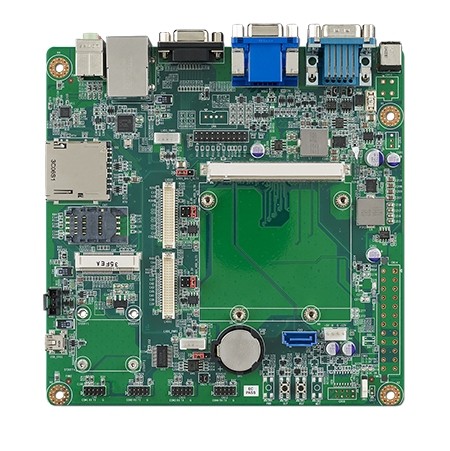

Development Board
Part Nubber: ROM-DB7500
₹0.00

  • Supports 24-bit LVDS Panel

  • Supports 1 PCIe x1

  • Supports 1 SATA, 4 UART, 1 RJ-45, 4 USB 2.0 (with 1 OTG)

  • HD Audio Codec

  • Supports dual CAN bus

  • Supports VGA and HDMI out

  • Onboard SD card slot, SIM card slotRoHSCOMPLIANT2002/

OR
Description

Details

Development board for RISC Qseven Module
Additional Information

Additional Information

Features ƒ Supports Qseven v1.2 module form factor ƒ Mini-ITX form factor ƒ 2 24-bit LVDS, 1 VGA, 1 HDMI ƒ 2 CAN bus 2.0B, 4 RS-232 (2 wire) ƒ 8 GPIO, Line-in/Audio-out ƒ Support ATX mode, Input power +12V ƒ Cable pack included
Packing List 1700020442-01 Debug Port Cable for ROM-7420 1 9696ED2000E Debug Port for ROM-7420 1 1654909900 DB9 Loopback 1 1700004711 SATA Cable 1 1700021941-01 SATA Power Cable 1 1700021861-01 USB Cable Type A 1 1700019076 USB OTG Host Cable 1 1700019077 USB OTG Client Cable 1 1700021882-01 LVDS Backlight Cable 1 1700021883-01 LVDS Cable 1 1700100250 COM cable DB9 1
Ordering Information ROM-DB7500-SCA1E
Diamensions 170 x 170 mm
