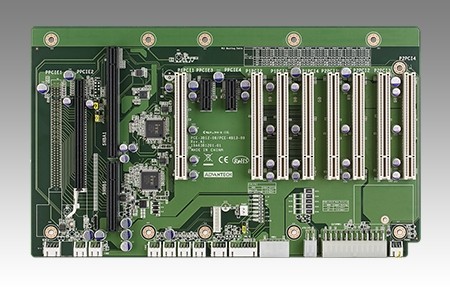

PICMG 1.3 Half-Size SBC Backplane

PICMG 1.3 Half-Size SBC Backplane

More Views

PICMG 1.3 Half-Size SBC Backplane
Part Nubber: PCE-3B12
₹0.00

  • 12-slot backplane for 14-slot half-sized chassis

  • Segments:1

  • One CPU card slot

  • PCIe slot: One x16, Two x1

  • PCI slot: Eight 32 bit/33MHz

  • Size: 315 x 185 mm

  • Compactible with IPC chassis: ACP-4020

  • Ordering information: PCE-3B12-08A1E

OR
Description

Details

PICMG 1.3 Half-size mainstream SHB Backplanes, Compactable with PCE-3000 series and IPC chassis: ACP-4020
Additional Information

Additional Information

Features 12-slot backplane for 14-slot half-sized chassis Segments:1 One CPU card slot PCIe slot: One x16, Two x1 PCI slot: Eight 32 bit/33MHz Size: 315 x 185 mm Compactible with IPC chassis: ACP-4020 Ordering information: PCE-3B12-08A1E
Packing List • PCE-3B12-08/PCE-4B13-08 User Manual 1st Ed. p/n: 20023B1200 • 2-year quality warranty card p/n: 2190000902
Ordering Information • PCE-3B12-08
Diamensions 315 x 185 mm
Reviews
Data Sheet
PDF
