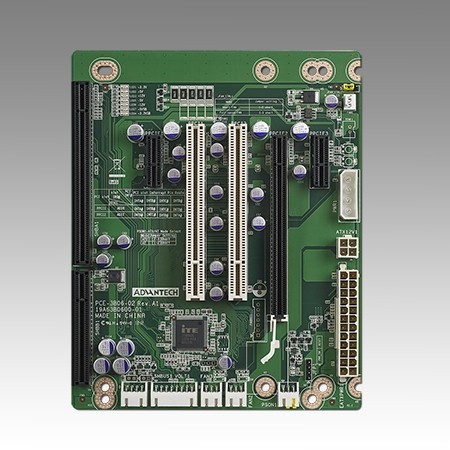

PICMG 1.3 Half-Size SBC Backplane

PICMG 1.3 Half-Size SBC Backplane

More Views

PICMG 1.3 Half-Size SBC Backplane
Part Nubber: PCE-3B06
₹0.00

  • 6 slot backplane for 6-slot chassis

  • Segments:1

  • One CPU card slot

  • PCIe slot: One x16, Two x1

  • PCI slot: Two 32/33

  • Size: 142 x 176 mm

  • Compactable with IPC chassis: IPC-6806S, IPC-3026

OR
Description

Details

PICMG 1.3 Half-size mainstream SHB Backplanes, Compactable with PCE-3000/PCE-4000 series and IPC chassis: IPC-3026, IPC-6806S
Additional Information

Additional Information

Features 6 slot backplane for 6-slot chassis Segments:1 One CPU card slot PCIe slot: One x16, Two x1 PCI slot: Two 32/33 Size: 142 x 176 mm Compactable with IPC chassis: IPC-6806S, IPC-3026
Packing List • PCE-3B06-02 startup manual p/n: 20063B0600 • 2-year quality warranty card p/n: 2190000902
Ordering Information PCE-3B06-02
Diamensions : 176 x 142.17 mm
