PICMG 1.3 Full-Size SBC Backplanes

PICMG 1.3 Full-Size SBC Backplanes

More Views

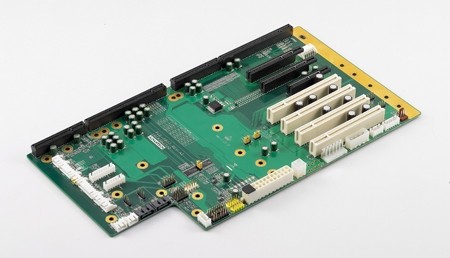

PICMG 1.3 Full-Size SBC Backplanes
Part Nubber: PCE-7B08
₹0.00

  • 8-slot BP for 8-slot chassis

  • Segment: 1

  • One CPU card slot

  • PCIe slot: Two x8; One x4

  • PCI-X slot: N/A

  • PCI slot: Four 32/33

  • Compatible with IPC chassis: IPC-6608 and IPC-6908

OR
Description

Details

8-slot BP for 8-slot chassis
Additional Information

Additional Information

Features • PICMIG 1.3 slots: PCE-7B08 supports PCE-7xxx CPU boards PCE-5B07 supports PCE-5xxx CPU boards • PCIe slots: PCE-7B08 Supports two PCIe x8 slot and one PCIe x4 slot PCE-5B07 Supports one PCIe x16 slot and one PCIe x4 slot • 32-bit PCI: Four 32 Bit / 33Mhz PCI slot • USB (2.0) support: Four USB 2.0 port pin headers
Packing List • 2 Two Port USB Cable p/n: 1700002204 • PCE-7B08-04A1E (PCE5B07-04A1E) User Manual 1st. ED p/n: 200K5B0700 • M4*6*0.7 Round Screws [25 pcs.] p/n: 1939000410 • 2 years quality warranty card p/n: 2190000902
Ordering Information PCE-7B08
Diamensions : 327.66 x 180 mm
