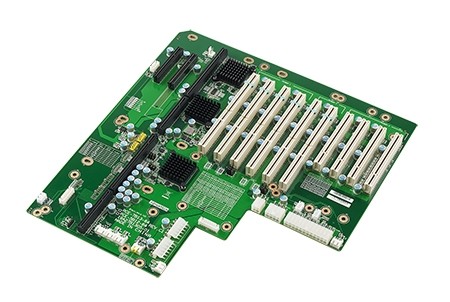

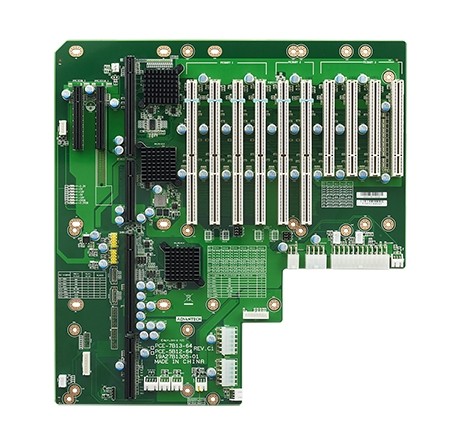

PICMG 1.3 Full-Size SBC Backplanes

PICMG 1.3 Full-Size SBC Backplanes

More Views

PICMG 1.3 Full-Size SBC Backplanes
Part Nubber: PCE-7B13
₹0.00

  • 13-slot BP for 14-slot chassis

  • Segment: 1

  • One CPU card slot

  • PCIe slot: Two x8

  • PCI-X slot: Two 64/100; Four 64/66

  • PCI slot: Four 32/33

  • Compatible with IPC chassis: IPC-610, IPC-611, IPC-630, ACP-4000, ACP-4320 and ACP-4360, ACP-4010

OR
Description

Details

PICMG 1.3 Full-Size SHB Backplanes, Server Grade Backplanes, 14-slot Rackmount Chassis Backplanes
Additional Information

Additional Information

Features

• PICMIG 1.3 slots: PCE-7B13-64 supports PCE-7xxx CPU boards PCE-5B12-64 supports PCE-7XXX/5XXX CPU boards • PCIe slots: PCE-7B13-64 Supports two PCIe x8 slot PCE-5B12-64 Supports one PCIe x16 slot • 64-bit PCI-X slots: Four 64 Bit / 66Mhz PCI-X slot Two 64 Bit / 100Mhz PCI-X slot • 32-bit PCI: Four 32 Bit / 33 Mhz PCI slot • USB (2.0) support: Four Universal Serial Bus ports to Backplane
Packing List • One 2 Ports USB Cable p/n: 1700002204 • PCE-7B13-64C1E(PCE-5B12- 64C1E) Startup Manual • M4*6*0.7 Round Screws [15 pcs.] p/n: 1939000410 • 2 years quality warranty card p/n: 2190000902
Ordering Information PCE-7B13
Diamensions : 327.66 x 297.67 mm
