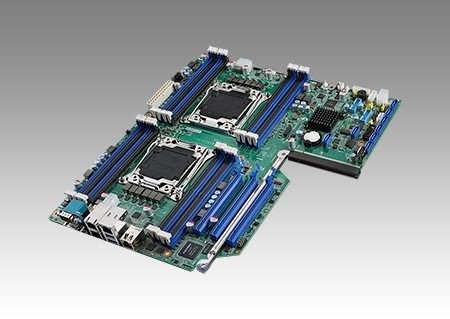

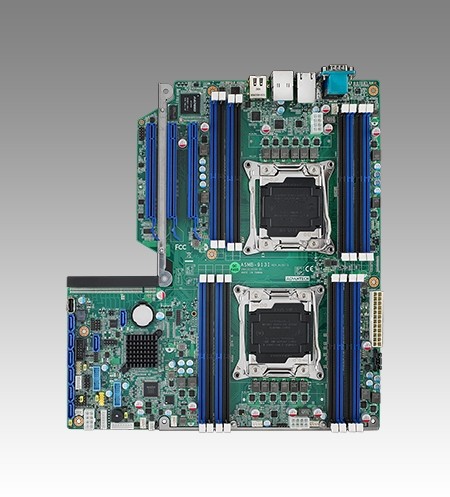

EATX Server Board

EATX Server Board

More Views

EATX Server Board
Part Nubber: ASMB-913
₹0.00

  • Compatible with Intel® Xeon Phi™ Coprocessors

  • EATX Server Board with dual Intel® Xeon® E5-2600 v3/v4 processor

  • 16 x DDR4 2133 MHz RDIMM up to 512 GB

  • Three PCIe x16 slot(Gen3.0) and PME expansion slot

  • 0 ~ 40° C ambient operation temperature range

  • Note: ASMB-913I could enable PME slot when processor is installed in CPU socket.

OR
Description

Details

Dual LGA 2011-R3 Intel® Xeon® E5-2600 v3/v4 EATX Server Board with 16 x DDR4 DIMM, 3 PCIe x16, 6 USB 3.0, PME support
Additional Information

Additional Information

Features
  • Compatible with Intel® Xeon Phi™ Coprocessors
  • EATX Server Board with dual Intel® Xeon® E5-2600 v3/v4 processor
  • 16 x DDR4 2133 MHz RDIMM up to 512 GB
  • Three PCIe x16 slot(Gen3.0) and PME expansion slot
  • 0 ~ 40° C ambient operation temperature range
  • Note: ASMB-913I could enable PME slot when processor is installed in CPU socket.
Packing List 2061913I01 Driver CD x 1 2001913I10 Startup manual x 1 1700003194 SATA data cables x 2 1703150102 SATA power cables x 2 1700019748 CPU power cable(8P) x 2 19Z0000995T000 I/O shield x 1
Ordering Information ASMB-913-00A1E
Diamensions 304.8 x 330.2 mm (12" x 13"
Reviews
Data Sheet
PDF
