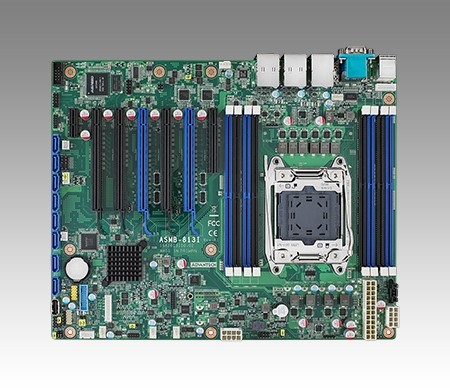

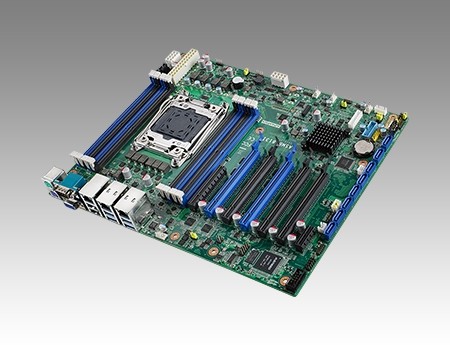

LGA 2011-R3 Intel® Xeon® E5-2600 v3/v4 ATX Server Board with 8 DDR4 DIMM, 5 PCIe x16 Slot (Gen 3.0), 6 USB 3.0, IPMI - Additional Information
-
Additional Information
Features - ATX Server Board with Intel® Xeon® E5-2600 v3/v4 processor
- Eight DDR4 2400 MHz RDIMM up to 256 GB and support DDR4 NVDIMM
- Seven PCIe expansion slots: five PCIe x8 (or two x16 and one x8), one PCIe x4 and one PCIe x1
- 0 ~ 60 °C ambient operation temperature range
Packing List 2061813I01 Driver CD x 1 2001813I10 Startup manual x 1 1700003194 SATA data cables x 2 1700022749-11 SATA power cables x 2 1700019748 CPU power cable(8P) x 2 1960048321T020 I/O shield x 1 Ordering Information ASMB-813-00A1E Diamensions 304.8 x 244 mm (12" x 9.6") - Reviews
-
