- Description
-
Details

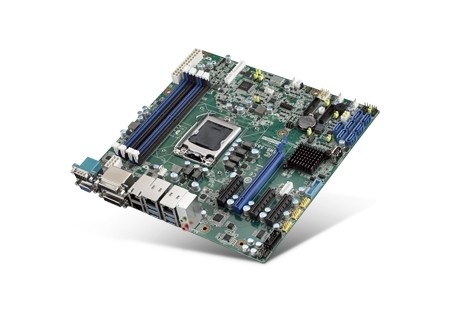

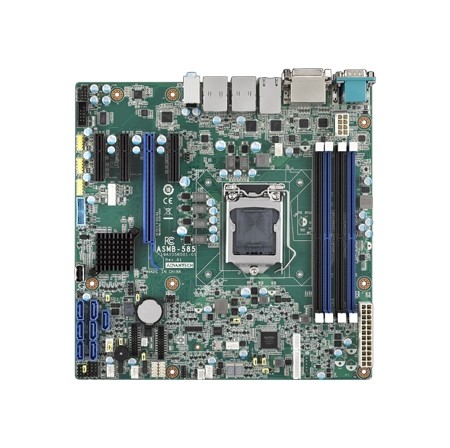

LGA 1151 Intel® Xeon® E3 v5/v6 & 6th/7th Generation Core i series MicroATX Server Board with 4 DDR4, 1 PCIe x16, 3 PCIe x4, Quad LANs, USB 3.0 - Additional Information
-
Additional Information
Features Supports LGA 1151 Intel® Xeon® E3-1200 v5/v6 and 6th/7th Generation Core™ i7/i5/i3 processors DDR4 ECC/Non-ECC 2400/2133/1866/1600 MHz DIMM up to 64GB 1 PCIe x16 slot (Gen3 x16link), 2 PCIe x4 slots (Gen3 x4 link), 1 PCIe x4 slot (Gen3 x1 link) 0 ~ 60° C ambient operation temperature range Support up to ten RS-232 or six RS-232 and four RS-422/485 ports Support up to four Gigabit LAN ports Triple display - two DVI-D and one VGA ports Support seven SATA3 ports and six USB 3.0 ports Packing List 2061058502 Driver CD x 1 2001058502 Startup manual x 1 1700003194 SATA data cables x 2 1700022749-11 SATA power cables x 2 19Z0000996T010 I/O shield x 1 Ordering Information ASMB-585G2-00A1E Diamensions 244 x 244 mm (9.6" x 9.6") - Reviews
-
- Data Sheet
-
