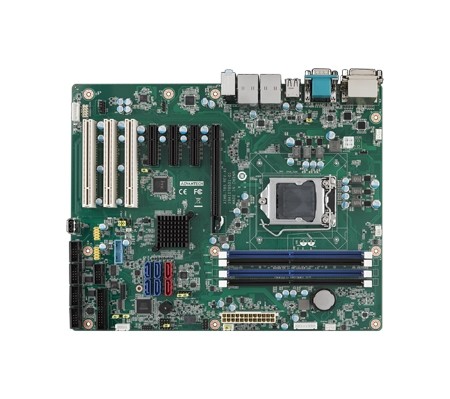

- Description
-
Details
- Supports Intel® 6th and 7th Core™ i7/i5/i3/Pentium/Celeron processor with Q170 chipset
- Four DIMM sockets support up to 64 GB DDR4 1866/2133
- Supports triple display VGA/2 DVI-D and dual GbE LAN
- Supports SATA RAID 0, 1, 5, 10, USB 3.0
- Supports Intel vPro, AMT 11.0 & TPM technologies
- Note 1: TPM module is required to enable Intel vPro and TPM technologies.
- Note 2: Intel 7th generation processors only support Windows 10 (64-bit).
- Additional Information
-
Additional Information
Features Form Factor - ATX
- CPU - Intel 6th Core i3/i5/i7 (LGA1151)
- Frequency - Up to 3.7 GHz
- L3 Cache - 8 MB/6 MB/4 MB/3 MB/
- BIOS - AMI SPI 128 Mbit
- Chipset - Intel Q170
- Integrated Graphics - YES
- Socket - LGA1151
- Dual Channel DDR4 1866/2133 MHz
- Up to 64 GB (16 GB per DIMM)
- 4 x 288-pin DIMM
- Intel HQ Graphics Integrated
- Share system memory up to 1 GB with 2 GB and above memory installed
- Triple Interface
- VGA: Up to 1920 x 1200 , DVI-D: Up to 1920 x 1200
- One InterfaPCI Express x 16
- Three PCI Express x 4
- Three PCI
- One LPC
- LAN1: Intel I219LM, LAN2: Intel I211AT
- 2 x RJ-45 - 10/100/1000 Mbps
- COM Port - 5 (4 x RS-232, 1 x RS-232/422/485)
- GPIO - 8-bit
- LPT - 1
- PS/2 Keyboard/Mouse - 1
- SATA - 6 (4 from Intel® Q170, 2 from Marvell 9186A2)
- SPDIF - 1
- System Fan - 2
- USB2.0 - 5
- USB3.0 - 2
- Display - 3
- USB3.0 - 4
- USB2.0 - 2
- COM - 1 RS232
- Audio - 2
- DVI - 2
- Ethernet - 2
- VGA - 1
Packing List Part Number
Description
Quantity
1700003194
SATA HDD cable
x2
1700022749-11
SATA power cable
x2
19Z0000884T000
I/O port bracket
x1
2006078511
Startup manual
x1
2066078502
Driver CD
x1
Ordering Information Part Number
Chipset
Memory
Display
USB 3.0
USB 2.0
COM
GbE LAN
AMT
SATA III
SW RAID
AIMB-785G2-00A1E
Q170
Non-ECC DDR4 1866/2133 up to 64GB
VGA + dual DVI
6
7
6
2
Yes
6
Yes
Diamensions 304.8 x 244 mm (12" x 9.6") - Reviews
-
