- Description
-
Details
BB-WLNN-EK-DP551 is an evaluation, testing and development kit for Airborne Enterprise Device Server Modules - with evaluation board, module, connectors and headers for access to all interfaces. The board incorporates circuitry, interfaces, push-buttons and LEDs to observe and evaluate the module. - Additional Information
-
Additional Information
Features - Quick time to market and reduced integration costs
- 802.11a/b/g/n Wi-Fi radio (2.4 GHz, 5 GHz)
- AirborneM2M Power Save firmware reduces power consumption and extends battery life in mobile devices
- Extended operating temperature Range (-40°C to +85°C) and environmental specifications
- AirborneM2M Speed Link roaming provides enhanced connection reliability
- AirborneM2M PortFlex capability enables any combination of communication ports (UART, SPI, GPIO, Ethernet and 802.11 interfaces)
- FCC Part 15 Class B Sub C Modular Approval minimizes regulatory requirements
- Supported by Airborne Management Center (AMC) device discovery, management and control application software

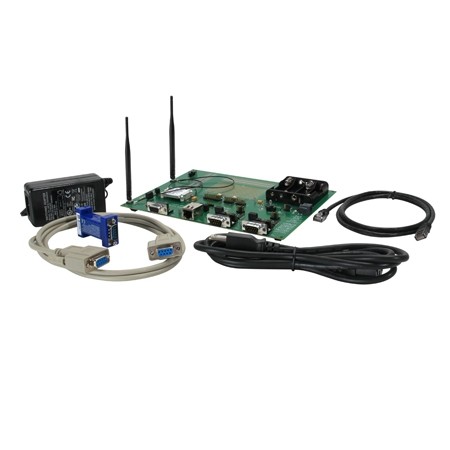

Packing List (1) Airborne Enterprise Module Evaluation Circuit Board Assembly (“EVB”) (1) Airborne WLNN-EK-DP551 module (mounted to EVB) (1) 5VDC power supply, 2.1mm barrel jack, cable (2) 2dBi, 2.4GHz/5GHz, 50 Ohm, omni-directional antenna (1) DB9/DB9 serial cable (null modem) (1) USB to serial adapter (Model# BB-232USB9M-LS) (1) Cat5 Ethernet cable (1) Quick Start Guide Ordering Information BB-WLNN-EK-DP551 Diamensions No - Reviews
-
