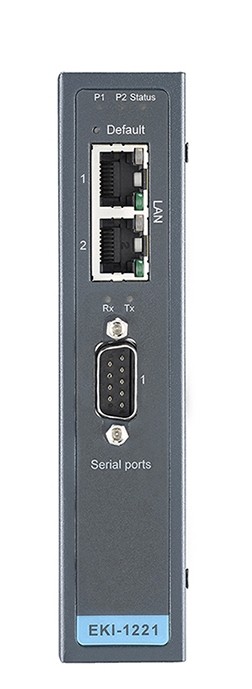

The EKI-1200 series Modbus gateways are bi-directional gateways for integrating new and existing Modbus/RTU and Modbus/ASCII serial devices to newer TCP/IP networked-based devices. The EKI-1221/1222/1224 feature two independent Ethernet ports and MAC addresses to provide a redundant networking mechanism to guarantee Ethernet networking reliability. They... More - Additional Information
-
Additional Information
Features 2 x 10/100 Mbps Ethernet ports for LAN redundancy Integrates Modbus TCP and Modbus RTU/ASCII networks Supports up to 921.6 kbps and any baud rate setting Supports up to 16 connections per serial port under Modbus master mode and 32 sessions under Modbus slave mode Software-selectable RS-232/422/485-2w/485-4w communication Mountable via DIN rail and wall mount Built-in 15 kV ESD protection for all serial signals Automatic RS-485 data flow control Supports surge protection for DC power ports with line-to-line (1 kV) and line-to-earth (2 kV) for signal ports with 2 kV "I" models support a wide operating temperature "CI" models support isolation and a wide operating temperature Packing List No Ordering Information EKI-1221-CE Diamensions 95 x 140 x 30 mm (3.74" x 5.512" x 1.181") - Reviews
-
