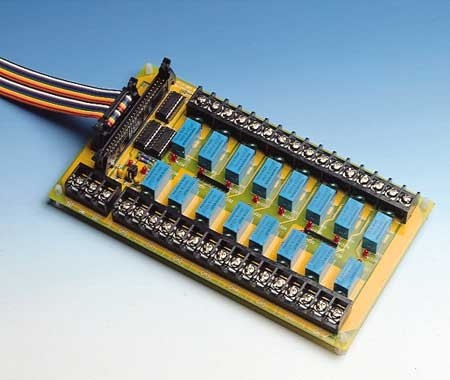

The PCLD-885 provides 16 SPST power relay channels with a maximum contact rating of 250 VAC @ 5 A or 30 VDC @ 5 A. The PCLD-885 can be driven directly by the digital output from PC-LabCards through its 20-pin box header or its 50-pin Opto-22 compatible connector. - Additional Information
-
Additional Information
Features - Accepts 20-pin or 50-pin (Opto-22 compatible) connectors
- 16 single-pole single-throw (SPST) relays
- High-power relay handles up to 5 A @ 250 VAC
- Onboard varistors protect all relay contact points
- Industrial screw terminals for ease of wiring
- LED status indicators
- +5 V/+12 V power/status LED indicator
Packing List No Ordering Information PCLD-885 Diamensions 205 x 114 mm (8" x 4.5") - Reviews
-
