Industrial Data Acquisition & Communication
-

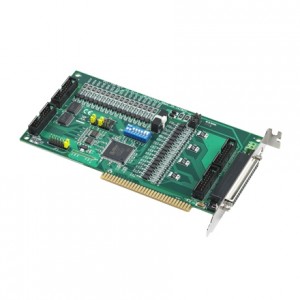

32 isolated DIO channels (16 inputs and 16 outputs)
32 TTL-level DIO channels (16 inputs and 16 outputs)
High output driving capacity
Interrupt capability
Two 20-pin connectors for isolated digital I/O channels and two for TTL digital I/O channels
D-type connector for isolated input and output channels
High-voltage isolation on output channels
Learn More
-

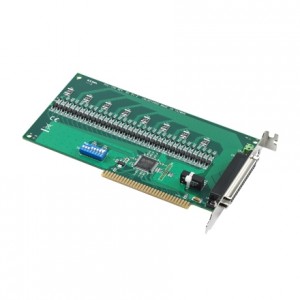

32 isolated digital output channels
High output driving capacity
High-voltage isolation on output channels
High sink current on isolated output channels (200 mA/channel)
Integral suppression diodes for inductive loads
Wide output range (5 ~ 40 VDC)
D-type connectors for isolated output channels
Learn More
-

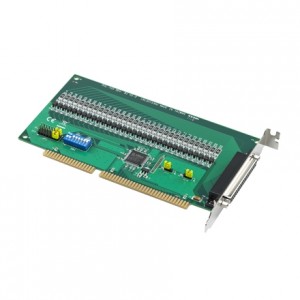

32 isolated, bidirectional digital input channels
High-voltage isolation (2,500 VDC)
Interrupt capacity
D-type connectors for isolated input channels
Reverse voltage protection for isolated input channels (up to 24 VDC)
Learn More
-

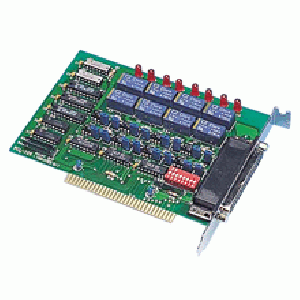

8 relay output channels and 8 isolated digital input channels
LED indicators to show activated relays
4 Form C and 4 Form A type relay output channels
Male DB37 matching connector included
Output status read-back
Learn More
-

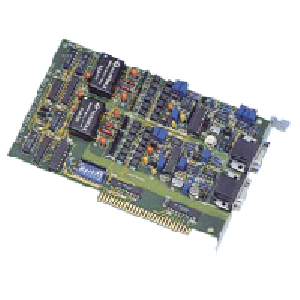

Independent analog output channels
12-bit resolution double-buffered D/A converter
Multiple voltage ranges: ±10 V, ±5 V, 0 ~ +5 V, 0 ~ +10 V and 4 ~ 20 mA current loop (sink)
16 digital input and 16 digital output channels (PCL-726)
Two DB9 connectors for easy wiring (PCL-728)
Learn More
-
12 independent analog output channels
Fuse on each channel
Universal PCI for 5 V and 3.3 V support
BoardID™ switch
Synchronized output function
Learn More
-
- Independent analog output channels
- 12-bit resolution double-buffered D/A converter
- Multiple voltage ranges: ±10 V, ±5 V, 0 ~ +5 V, 0 ~ +10 V and 4 ~ 20 mA current loop (sink)
- 16 digital input and 16 digital output channels (PCL-726)
- Two DB9 connectors for easy wiring (PCL-728)
Learn More
-
- 16 single-ended or 8 differential analog inputs
- 12-bit A/D converter, with up to 100 kHz sampling rate
- Programmable gain
- Automatic channel/gain scanning
- Onboard FIFO memory (1024 samples, PCL-818HD/HG only)
- One 12-bit analog output channel
- 16 digital inputs and 16 digital outputs
- Onboard programmable counter
Learn More
-
- 16 single-ended or 8 differential analog inputs
- 12-bit A/D converter, with up to 100 kHz sampling rate
- Programmable gain
- Automatic channel/gain scanning
- Onboard FIFO memory (1024 samples, PCL-818HD/HG only)
- One 12-bit analog output channel
- 16 digital inputs and 16 digital outputs
- Onboard programmable counter
Learn More
-
- 16 single-ended analog inputs
- 12-bit A/D converter, with up to 30 kHz sampling rate
- Programmable gain
- Two 12-bit analog output channels
- 16 digital inputs and 16 digital outputs
- Onboard programmable counter
- A/D with DMA or interrupt
Learn More
