Industrial Data Acquisition & Communication
-
- Operates two separate CAN networks simultaneously
- High speed transmission up to 1 Mbps
- Optical isolation protection of 1000 VDC
- Windows DLL library and examples included
- I/O address automatically assigned by PCI PnP
- Supports Windows CE5/CE6/XP/7/8.1/10 and Linux drivers
Learn More
-

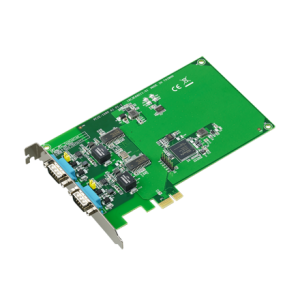

- PCIe bus specification 1.2 compliant
- Operates two separate CAN networks at the same time
- High speed transmission up to 1 Mbps
- 16 MHz CAN controller frequency
- Optical isolation protection of 2,500 VDC ensures system reliability
- Windows DLL library and examples included
- Supports Windows CE5/CE6/XP/7/8.1/10 drivers and utilities
- Supports Linux 2.4.xx / 2.6.xx; Intel x86 hardware platform
Learn More
-

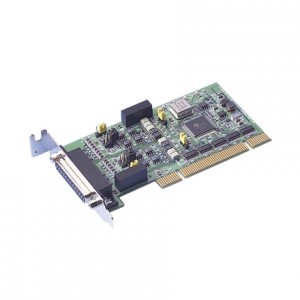

- PCI bus 2.2 compliant
- Up to 921.6 kbps speed for extremely fast data transmissions
- 2 x RS-232/422/485 ports
- Supports Windows XP/7/8/10 and Linux operating systems
- 3,000 VDC isolation protection
- Automatic RS-485 data flow control
- Powerful and easy-to-use utility (ICOM tools)
- Supports any baud rate setting
Learn More
-

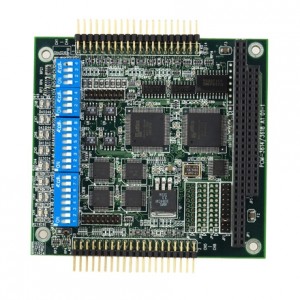

- Eight independent RS-422/485 serial ports
- Automatic RS-485 data flow control
- Transmission speeds up to 921.6 Kbps
- Shared IRQ settings for each port
- Windows® 95/98/NT/ME/2000/XP, Windows® CE driver
- Built-in termination resistors
- LED indicators: TX, RX
- Standard PC ports: COM1, COM2, COM3, COM4 compatible
Learn More
-
WiFi Serial Device Server
Wide operating temperature range: -20 to +85 °C
Open board design
Advanced Enterprise Class wireless security (WPA2-Enterprise, WPA, WEP, EAP)
Power Supply Included
Learn More
-

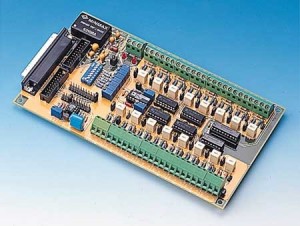

- Multiplexes 16 differential inputs to one A/D input
- Expands a PC-LabCard™ product’s analog inputs to 128 channels
- High-grade amplifier provides switch selectable gains of 1,2,10,50,100,200,1000
- Onboard cold-junction compensation circuits for direct thermocouple measurement
- Built-in signal conditioning functions include filter, attenuator and current shunt
- Second connectors onboard allow daisy chaining
- Screw-clamp terminal blocks permit easy and reliable connections
Learn More
-

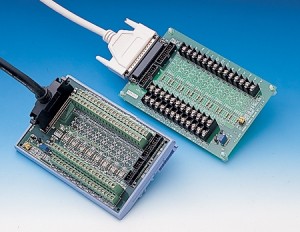

- Low-cost screw-terminal boards
- Onboard CJC (Cold Junction Compensation) circuits for direct thermocouple measurement.
- Reserved space for signal-conditioning circuits, such as a low-pass filter, and more.
- Industrial-grade screw-clamp terminal blocks for heavy-duty and reliable connections.
- Supports PCL-818 series multifunction cards
- Nylon standoffs, screws and washers included for easy mounting
- Dimensions (W x L): 169 x 112 mm (6.7" x 4.4" )
Learn More
-
- Low-cost screw-terminal with 68-pin SCSI-II connector
- Onboard CJC (Cold Junction Compensation) circuits for direct thermocouple measurement
- Reserved space for signal-conditioning circuits such as low-pass filter, voltage attenuator and current shunt
- Industrial-grade screw-clamp terminal blocks for heavy-duty and reliable connections
- DIN-rail mounting case for easy mounting
- Supports PCI-1710U/UL, PCI-1710HGU, PCI-1711U/UL, PCI-1716/L
Learn More
-

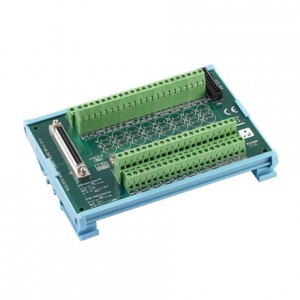

- Low-cost screw-terminal with 68-pin SCSI-II connector
- Reserved space for signal-conditioning circuits such as low-pass filter, voltage attenuator and current shunt
- Industrial-grade screw-clamp terminal blocks for heavy-duty and reliable connections
- DIN-rail mounting case for easy mounting
- Supports PCI-1710U/UL, PCI-1710HGU, PCI-1711U/UL, PCI-1716/L (PCLD-8710) and PCI-1712/1712L (PCLD-8712)
Learn More
-

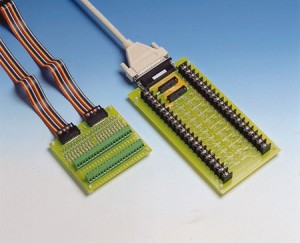

- Pin to pin design
- Low-cost universal screw-terminal boards for industrial applications
- 40 terminal points for two 20-pin flat cable connector ports
- Reserved space for signal-conditioning circuits, such as a low-pass filter, voltage attenuator and c
- Table-top mounting using nylon standoffs. Screws and washers provided for panel or wall mounting
- Supports PC-LabCard™ products with DB-37 connectors
- Industrial-grade terminal blocks (barrier-strip) permit heavy-duty and reliable connections
- Dimensions: 221 x 115 mm (8.7" x 4.5")
Learn More
