Industrial Data Acquisition & Communication

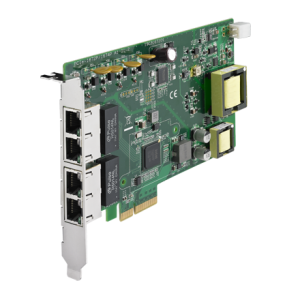

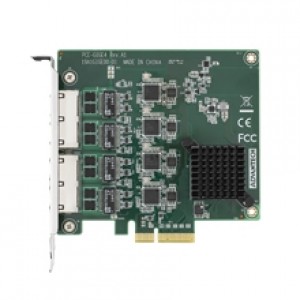

• Intel® GbE Mac Controller
• PCI Express® x4 compliant
• Supports 2 or 4 Gigabit Ethernet MAC Controller and PHY ports
• Supports 12 VDC AT/ATX input power boost up to 15.4 watts at 48 VDC per PoE port
• Supports PoE (Power over Ethernet), IEEE 802.3af compliant
• Powered Device (PD) auto detection and classification
• Supports IEEE 802.3u Auto-Negotiation
• 2.25 KV isolation protection on LAN ports and power

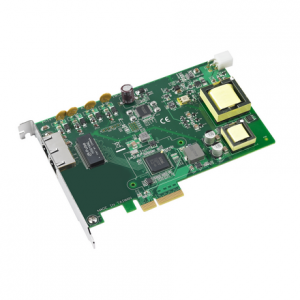

• Intel® GbE Mac Controller
• PCI Express® x4 compliant
• Supports 2 Gigabit Ethernet MAC Controller and PHY ports
• Supports 12 VDC AT/ATX input power boost up to 15.4 watts at 48 VDC per PoE port
• Supports PoE (Power over Ethernet), IEEE 802.3af compliant
• Powered Device (PD) auto detection and classification
• Supports IEEE 802.3u Auto-Negotiation
• 2.25 KV isolation protection on LAN ports and power

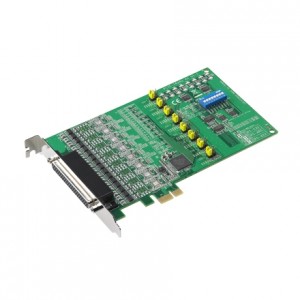

• PCI Express bus 2.0 compliant
• Speeds up to 921.6 kbps for extremely fast data transmission
• Supports any baud rate setting
• 8 x RS-232 ports
• XR17V358 UART with 256-byte FIFOs

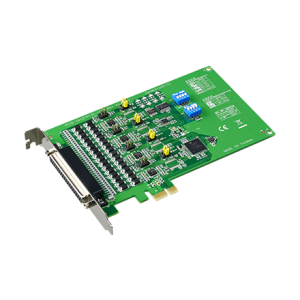

• PCI Express bus 2.0 compliant
• Speeds up to 921.6 kbps for extremely fast data transmission
• Supports any baud rate setting
• 4 x RS-232 or RS- 232/422/485 ports
• Operating systems supported: Windows XP/Vista/7/8/10, Linux
• XR17V354 UART with 256-byte FIFOs

PCI Express bus 2.0 compliant
Speeds up to 921.6 kbps for extremely fast data transmission
Supports any baud rate setting
4 x RS-232 ports
Operating systems supported: Windows XP/Vista/7/8/10, Linux
XR17V354 UART with 256-byte FIFOs

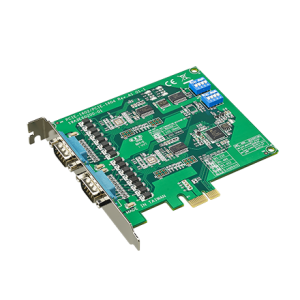

• PCI Express bus 2.0 compliant
• Speeds up to 921.6 kbps for extremely fast data transmission
• Supports any baud rate setting
• 2 x RS-232 ports
• Operating systems supported: Windows XP/Vista/7/8/10, Linux
• XR17V352 UART with 256-byte FIFOs

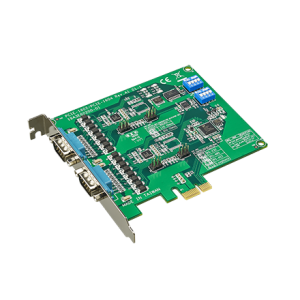

• PCI Express bus 2.0 compliant
• Speeds up to 921.6 kbps for extremely fast data transmission
• Supports any baud rate setting
• 2 x RS-232 or RS- 232/422/485 ports
• Operating systems supported: Windows XP/Vista/7/8/10, Linux
• XR17V352 UART with 256-byte FIFOs

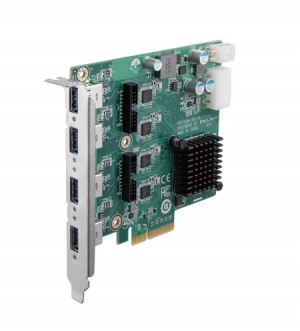

Four USB 3.0 host controllers
Support 1500mA Max. Current per Port
Supports four or eight USB 3.0 ports
3 Ports with Locking connector compliant with USB3 Vision V1.0 Standard-A
Compliant with USB 3.0 Specification and Intel® xHCI Specification, Revision 1.0
PCI Express x4 interface
Supports Microsoft Windows 7/8.1 and Linux operating systems

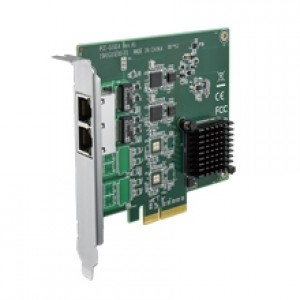

• Intel Ethernet Controller i210
• Support Wake-on-LAN function
• Supports two or four GbE LAN ports
• Support PXE function
• PCI Express x4 interface
• Supports Microsoft Windows 7/8.1 and Linux operating systems
