Industrial Data Acquisition & Communication
-
Meets Advantech Standard iDoor Technology
PCI Express® Mini Card Specification Revision 1.2 compliant
Speeds up to 921.6 kbps for extremely fast data transmission
Supports any baud rate setting (50bps~921.6kbps)
Supports both Isolated & Non-Isolated Protection with 2/4 Ports RS-232/422/485
I/O address automatically assigned by PCIe plug & play
Operating systems supported: Windows XP/7/8/10, and Linux
XR17V352/XR17V354 UART with 256-byte FIFOs
Learn More
-

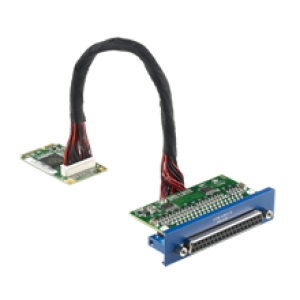

- Meets Advantech Standard iDoor Technology
- PCI Express® Mini Card Specification Revision 1.2 compliant
- Speeds up to 921.6 kbps for extremely fast data transmission
- Supports any baud rate setting (50bps~921.6kbps)
- Supports both Isolated & Non-Isolated Protection with 2/4 Ports RS-232/422/485
- I/O address automatically assigned by PCIe plug & play
- Operating systems supported: Windows XP/7/8/10, and Linux
- XR17V352/XR17V354 UART with 256-byte FIFOs
Learn More
-

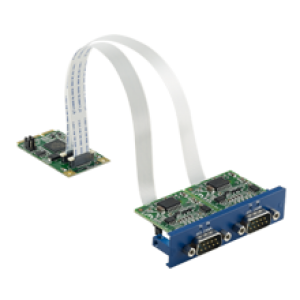

- Meets Advantech Standard iDoor Technology
- PCI Express® Mini Card Specification Revision 1.2 compliant
- Speeds up to 921.6 kbps for extremely fast data transmission
- Supports any baud rate setting (50bps~921.6kbps)
- Supports both Isolated & Non-Isolated Protection with 2/4 Ports RS-232/422/485
- I/O address automatically assigned by PCIe plug & play
- Operating systems supported: Windows XP/7/8/10, and Linux
- XR17V352/XR17V354 UART with 256-byte FIFOs
Learn More
-

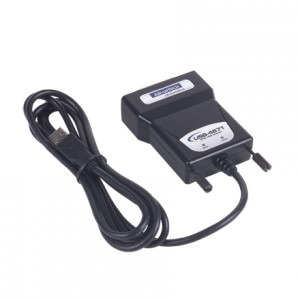

- Supports USB 2.0
- Bus-powered
- Complete IEEE 488.1 & 488.2 compatibility
- Support industrial standard VISA
- Full driver, library, and example support, including; Visual C++®, Visual C#®, Visual Basic®, Visual Basic .NET®, Delphi®, and LabView
- Provides powerful and easy-to-use configuration utility
- No GPIB cable required for instrument connection
- Plug & Play installation and configuration
- Convenient portable design
Learn More
-

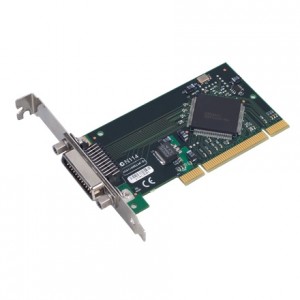

IEEE 488.2 Standard interface
Support industrial standard VISA
Complete Talker/Listener/Controller
Includes GPIB-Library software
Data transfer rates over 1.5 MB/s
High-Speed State Machine Bus Manager
7 Interrupt lines, shared interrupt capability
Transparent interrupt enabling/disabling
Low profile MD1 size
Learn More
-

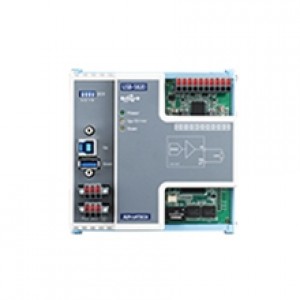

USB 3.0 SuperSpeed
Daisy chainable by built-in USB hub
4 x 16-bit analog output channels with 2,500 V DC isolation
Multiple voltage and current output ranges
Removable European-type connector
Supported operating systems: Windows XP/7/8/10
Learn More
-
USB 3.0 SuperSpeed
Daisy chainable by built-in USB hub
8 x 16-bit analog input channels with 2,500 VDC isolation
Support voltage and current measurement
Wide common-mode voltage range (±275 V)
Removable European-type connector
Supported operating systems: Windows XP/7/8/10
Learn More
-

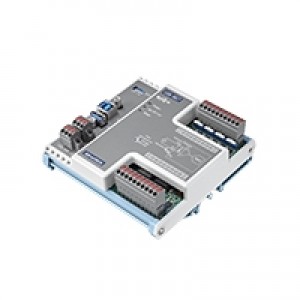

- USB 3.0 SuperSpeed and daisy chainable by built-in USB hub
- 4x simultaneously sampled analog inputs, up to 192 kS/s
- 24-bit resolution ADCs with -94 dB total harmonic distortion plus noise (THD+N)
- Built-in anti-aliasing filter
- 2 mA integrated electronic piezoelectric (IEPE) excitation currents
- 2 analog outputs with update rate up to 192 kS/s
- 24-bit resolution DACs with -90 dB total harmonic distortion plus noise (THD+N)
- 2 tachometer inputs for period or frequency measurement
- 4-ch isolated digital input and 4-ch isolated digital output
Learn More
-

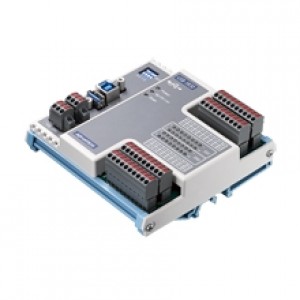

USB 3.0 SuperSpeed
Daisy chainable by built in USB hub
16-ch digital input and 16-ch digital output with 2,500 VDC isolation
Wide input voltage range (10 ~ 30 VDC)
Wide output voltage range (5 ~ 40 VDC) and high output current (350 mA/ch)
Quick removable European type connector
LED indicators for I/O status
Supported operating systems: Windows XP/7/8/10
Learn More
-
USB 3.0 SuperSpeed
Daisy chainable by built in USB hub
16-ch digital input and 8-ch PhotoMOS Relay output (Form A) isolation
Wide input voltage range (10 ~ 30 VDC)
1500 VDC optical isolation for relay outputs
Quick removable European type connector
LED indicators for I/O status
Supported operating systems: Windows XP/7/8/10
Learn More
