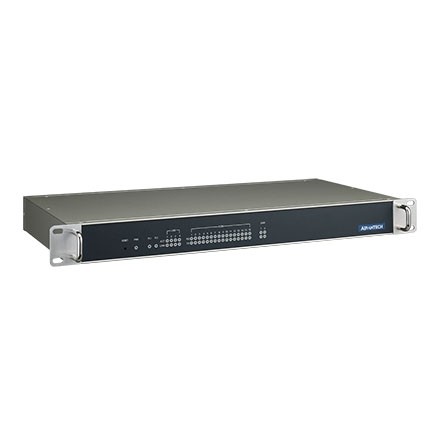

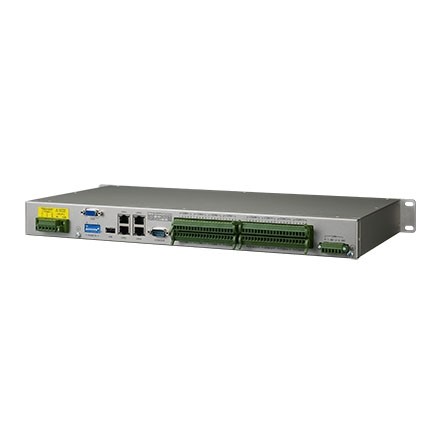

For solar power, electricity and factory related applications which require Ethernet and Serial Port communication solutions, Advantech has released the ECU-4553 RISC-based industrial communication gateway. ECU-4553 has an open platform design with Cortex A8 processor, 16xRS-232/485 isolated serial ports, 4x10/100 Ethernet ports and operating temperature range from -40 to 70°C.WithLinux operating system and open TagLink SDK, which enable to system integrators to develop applications which precisely ft their need. - Additional Information
-
Additional Information
Features - TI Cortex A8 800MHz CPU
- DDR3L 1GB RAM
- 1GB Micro-SD card for system, 1 x Micro-SD Slot for storage; Support Data logger on SD card
- 1 x IRIG-B
- 16 x RS-232/485 isolated serial ports
- 4 x 10/100 Base-T Ethernet ports
- 2 x CAN2.0B
- Operation System: RT-Linux
- Operation Temperature -40~70°C
- No RED Certification
Packing List No Ordering Information ECU-4553-R12SAE Diamensions No - Reviews
-
