Industrial Automation Controllers
-
- Channels : 4 (Differential)
- Input Type : V, mA
- Voltage Range : ±10 V, 0 ~ 10 V, 0 ~ 20 mA
- Input Impedance : 800 kΩ, for voltage input, 500 Ω, for current input
- Resolution : 16-bit with ±0.1% for voltage input, 16-bit ±0.2% for current input
- FSR accuracy : @25°C
- Sample Rate : 10k sample/s (per channel)
Learn More
-
- Channels: 4
- Output Type: V, mV, mA
- Output Range: 0~5V, 0~10V, ±5V, ±10V, 4~20mA, 0~20mA
- Resolution: 16-bit with accuracy, 0.01% FSR@25°C
- Slew Rate: Configurable
- Drift: ± 50 ppm/°C
- Current Load Resistor: Max. 500 Ω
- Voltage Load Resistor: Min. 1KΩ
Learn More
-
- Channels : 4
- Digital Input : Wet Contact
- Rated voltage: 24 VDC
- Logic level 1: 10~30 VDC and -10~-30 VDC
- Input Delay : From logic level 0 to 1: 4 ms
- From logic level 1 to 0: 4 ms
- Logic level 0: -3~3 VDC
- Digital Filter : 3ms
Learn More
-
- Function: Conversion of EtherCAT to 100BASE-TX Ethernet for extension of the EtherCAT network
- Cable : Ethernet/EtherCAT cable (min. Cat. 5) shielded
- Distance between stations : Max. 100 m (100BASE-TX)
- Bus Interface : 1 x RJ45
- Power from bus : N/A
Learn More
-

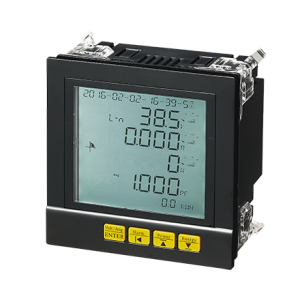

- Up to 39 power parameters measurement
- Especially suitable for unbalanced load measurement
- Flexible connection (1P2W,1P3W, 3P3W..) mode
- Carbon dioxide emission monitoring
- High brightness LED display
- Compact size (96×96mm)
- Convenient fastened mounting
Learn More
-

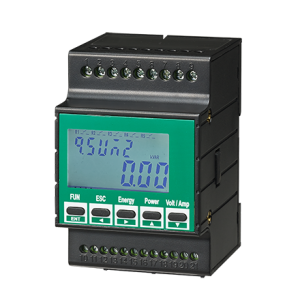

- Supports max. five loops of power input with single phase
- Flexible connection (1P2W, 3P3W, 3P4W..) mode
- Built-in F-RAM to extend memory life cycle
- Standard DIN-Rail mounting and compact size (54 × 65mm)
- Split-Core transformer supported
Learn More
-
- TI Cortex A8, 800MHz
- DDR3L 256MB RAM
- 1 x Micro-SD Slot
- 4 x RS-232/485 isolated serial ports
- 2 x 10/100 Base-T Ethernet ports
- 1 x Mini-PCIe for WIFI/3G/GPRS/4G
- Support web service for remotely on-line monitoring
- Support SD card & on-line firmware update
Learn More
-

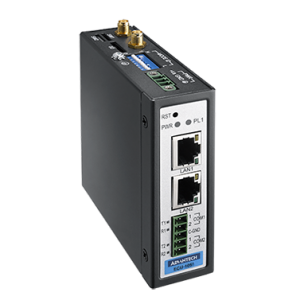

- TI Cortex A8 600MHz CPU with DDR3L 256MB RAM
- Support web service for remotely on-line monitoring
- Firmware update by SD card and online update
- Data logger on SD card
- Support dual SIM slots for communication redundant
- Support MQTT Client for cloud communication
- Wide Operating temperature: -40 ~ 70°C
- No RED Certification
Learn More
-

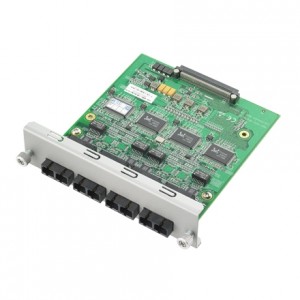

- 120 Pin PCI-Express Connector for UNO-4673A/83/ECU-4784 Serie
- IEEE 802.3, 802.3u, 802.3x LAN 100Base-FX
- 4 x SC type Multi-mode Fiber Optic connector
Learn More
-

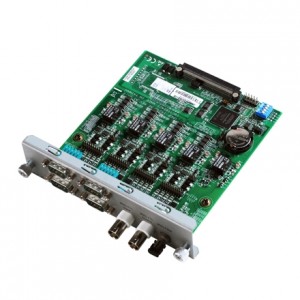

- 4xRS-232/422/485 Isolated Serial Ports with Automatic Flow Control
- Fiber, TTL, and RS-485 IRIG-B Demodulated Time Code Inputs
- TTL and RS-485 IRIG-B Demodulated Time Code Onputs
- IEC 61850-3 and IEEE 1613 Compliant for Substation Automation Applications
Learn More
