Industrial Automation Controllers
-
Nominal Input VAC: 240 Volts AC HP (CT): 0.5 Horsepower Amps (CT): 2.5 Amps Input Phase: 1 or 3 Operator Controls: Built In Max. Frequency: 400 Hertz Braking Type: DC Injection Motor Control-Max Level: V/Hz (Scalar) Closed Loop: No AC Line Regenerative?: No Dynamic Braking Trans?: Not Available Frame Size: B1 Mounting: Panel Height: 5.2 Inches Width: 2.68 Inches Depth: 5.04 Inches H x W x D (in.): 5.2 x 2.68 x 5.04 Learn More -
MPU points: 14 (8DI + 6DO) Max. I/O points: 494 (14 + 480) Program capacity: 8k steps COM port: Built-in RS-232 & RS-485 ports, compatible with Modbus ASCII/RTU protocol. Can be master or slave. High-Speed Pulse Output：Supports 4 points (Y0 ~ Y3) of independent high-speed (max. 10kHz) pulse output Supports PID Auto-tuning：DVP-SS2 saves parameters automatically after the PID auto temperature tuning is completed. Built-in High-Speed Counters
Learn More -

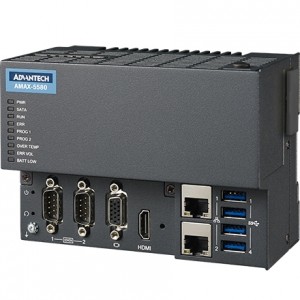

- 6th generation Intel® Core™ i7/i5/Celeron processors up to 2.6 GHz with 4GB/8GB DDR4 memory
- 2 x GbE, 4 x USB 3.0, 2 x RS-232 /422/485, 1 x VGA, 1 x HDMI
- Dual power input with alarm output
- Compact and fanless design for DIN-rail mount in Control cabinet
- Maximum 4 expansion capability on left side for AMAX-54XX series module
- Wireless mPCIe module support for 3G/LTE/Wifi/GPS
- Chassis grounding protection
- Independent resource on Intel i210 GbE for better EtherCAT performance
- Upstream LAN redundancy (Intel Teaming Function)
-

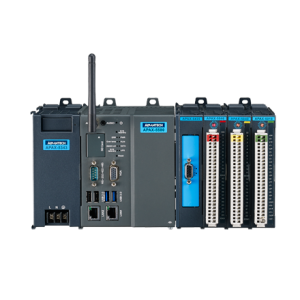

High performance SoftLogic PC-based controller, empowered by CODESYS Learn More -

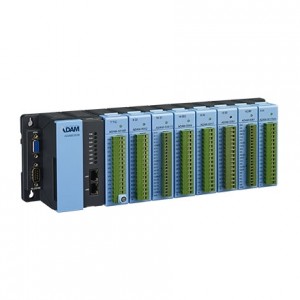

- Support Modbus/RTU, Modbus/TCP Master and Slave function libraries
- C and Python programming based on Linux operating system
- Support Web server for I/O configuration and monitoring
- Built-in real-time clock and watchdog timer
- 4 serial communication ports onboard
- 2 Ethernet Ports
- 4 or 8 I/O slot expansion
- 1 micro SD slot expansion for data storage
-

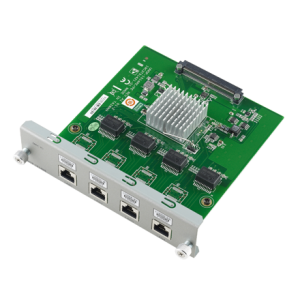

- 120 Pin Connector for UNO-4673A/83/ECU-4784 Series
- Bus Type: PCIe Expansion
-
- Intel® 82580 4-Port Gigabit Ethernet Controller
- 4-Port RJ45 or SFP pluggable modules LAN
- SFP socket for easy and flexible fiber expansion
- IEEE 1588 Precision Time Protocol support
- 120 Pin Connector for UNO-4673A/83 Series (PCI-Express X 1 compliant)
-
- Intel Hasewell Core i7, i3, Celeron Processors
- Isolated 8 x LAN, 10 x Serial Port Communication Interfaces
- 220VAC/DC Redundant Power Supply
- 48V Power for Selection
- 2 x IO Expansion Slots
- 2 x 2.5’’ SATA HDD, 1 x CFast Socket for Storage
- VGA & DVI Display Interface
-
- 120 Pin Connector for UNO-4673A/83/ECU-4784 Series
- Bus Type: PCI-104, Mini-PCIe (reserved) Expansion
-

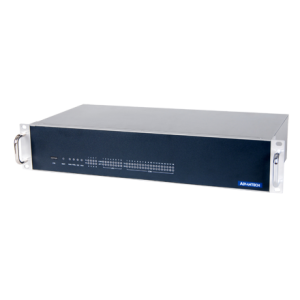

- IEC 61850-3 and IEEE 1613 compliant
- Intel Atom N2600 1.6GHz processor, 2GB DDR3
- 2 x RS-232, 16 x RS-232/485(Max.) isolated serial ports
- 2 x 10/100/1000, 6 x 10/100 Base-T Ethernet ports
- 1 x CF, 2 x 2.5" SATA HDD
- 8-ch isolated DI, 8-ch isolated DO
- 1 x Time Synchronize IRIG-B
