Details

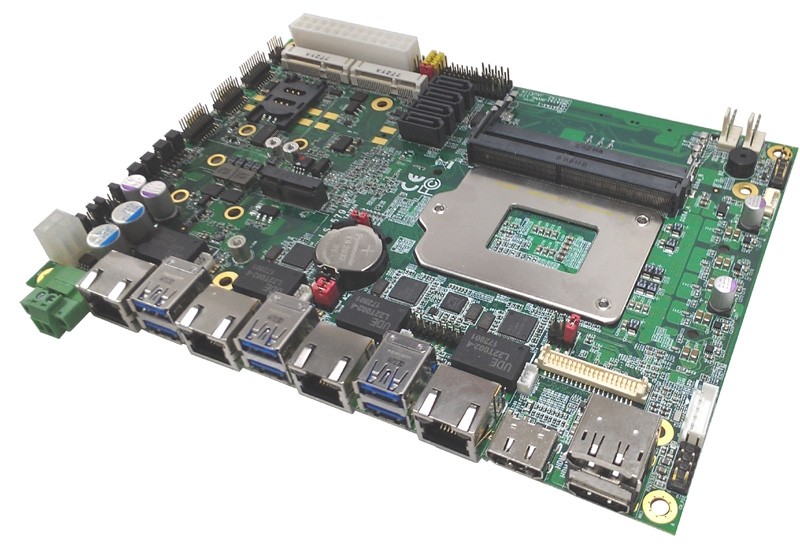

Support Intel® 6th & 7th Gen Core™ i7 / i5 / i3 S-seriesand Xeon® E3-1200 v5 / v6 Processor with
Intel® C236 chipset, 2 x DDR4 SO-DIMM 1866/2133 up to 32 GB, integrated VGA, HDMI, LVDS,
DisplayPort, 4 x Giga LAN (Support PSE), 4 x USB 2.0, 6 x USB 3.0, 2 x RS232/422/485, 4 x RS232,
1 x PS/2, HD Audio, 4 x SATA3, GPIO, SMBUS, 1 x LPC, 1 x SIM socket, 2 x Mini-PCIe socket
(Support mSATA), 2 x M.2 (Key M), 1 x M.2 (Key E).
- Additional Information
-
Additional Information
Features -
CPU: Intel® 6th / 7th Gen Core™ i7 / i5 / i3 S-series Processor and E3-1200 v5 / v6 processor, FCLGA1151 package. (TDP up to 45W)
-
Memory: Two DDR4 1866/2133 SO-DIMM up to 32GB.
-
Integrated Graphics: Intel® integrated HD Graphics.
-
Display port interface: Onboard Display port connector.
-
LVDS interface: Onboard 18/24-bit single/dual channel LVDS connector with +3.3V/+5V/ +12V supply
-
VGA interface: 16-pin connector.
-
HDMI interface: Onboard HDMI connector.
-
LAN Interface: 3 x Intel® I210-AT Gigabit LAN, 1 x Intel® I219-LM Gigabit PHY LAN.
-
Serial ATA: Support 4 x SATA3.
-
Audio: Realtek ALC262 HD Audio.
-
Internal I/O: 4 x SATA3, 2 x RS232/422/485, 4 x RS232, 4 x USB2.0, 1 x LVDS, 1 x LPC, 1 x LCD inverter, 1 x GPIO, 1 x Audio, 1 x PS/2, 1 x SMBUS.
-
Rear I/O: 1 x DisplayPort, 2 x HDMI, 6 x USB3.0, 4 x LAN, .
-
Extended interface: Two PCIe Mini card (Support mSATA), one SIM socket, two M.2 (Key M) for PCIe NVMe 2242/2260/2280mm, one M.2 (Key E) for Wi-Fi and Bluetooth 2230m.
-
GPIO interface: Onboard programmable 8-bit Digital I/O interface.
-
Power requirement: Standard 24-pin ATX power supply (20-pin is compatible) or 4-pin 9~35V.
Packing List LS-579: Ordering Information LS-579: Diamensions No -
