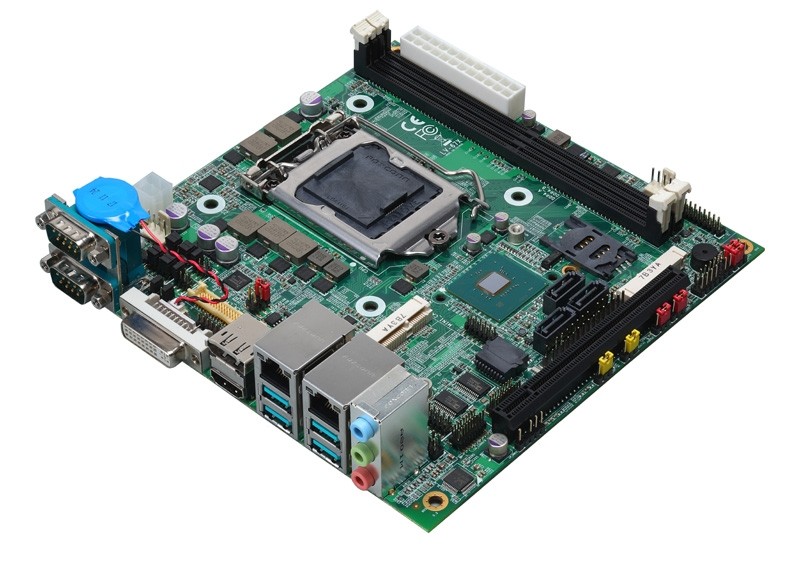

Mini-ITX Motherboard support 8th & 9th Generation Intel® Core™ Processor

Part Nubber: LV-67X

₹18,000.00

Support 8th & 9th Generation Intel® Core™ Desktop Processor.

DDR4 up to 32 GB, onboard HDMI, LVDS, DVI, VGA, optional DisplayPort, 1 x Giga LAN, 1 x Giga

PHY LAN, 4 x USB 2.0, 6 x USB 3.1,
2 x RS232/422/485, 4 x RS232, 1 x PS/2, HD Audio, 3 x SATA3,

GPIO, SMBUS, LPC, PCIe X16,
1 x SIM socket, 1 x Mini-PCIe socket (support mSATA), 1 x Half-Size

Mini-PCIe socket.

Qty:

Description

Details

CPU: Intel® Core™ Desktop Coffee Lake series Processor, FCLGA1151 package. (Support up to 65W TDP)
Chipset: Intel® Q370
Memory: Two DDR4 DIMM up to 32GB
Integrated Graphics: Intel® integrated Ultra HD Graphics.
Display port interface: Onboard Display port connector.
LVDS interface: Onboard 18/24-bit single/dual channel LVDS connector with +3.3V/+5V/ +12V supply
Display port interface: Onboard Display port connector.(optional)
DVI interface: Onboard DVI connector.
HDMI interface: Onboard HDMI connector.
VGA interface: 16-pin connector.
LAN Interface: 1 x Intel® Gigabit PHY LAN, 1 x Intel® Gigabit LAN.
Serial ATA: Support 3 x SATA3.
Audio: Realtek ALC262 HD Audio.
Internal I/O: 3 x SATA3, 4 x RS232, 2 x USB3.1, 4 x USB2.0, 1 x LVDS, 1 x VGA, 1 x LPC, 1 x LCD inverter, 1 x GPIO, 1 x Audio, 1 x PS/2, 1 x SMBUS.
Rear I/O: 1 x DVI, 1 x HDMI, 1 x DisplayPort(optional), 4 x USB3.1, 2 x LAN, 1 x Audio, 2 x RS232/422/485.
Extended interface: One PCI-E X 16 slot, one PCIe Mini card(Support mSATA), one Half-Size PCI-E Mini card, one SIM socket.
GPIO interface: Onboard programmable 8-bit Digital I/O interface.
External Audio: Line-in, MIC-in, Front, Rear, Center/Subwoofer.
Power requirement: Standard 24-pin ATX power supply (20-pin is compatible) and 4-pin 12V.
