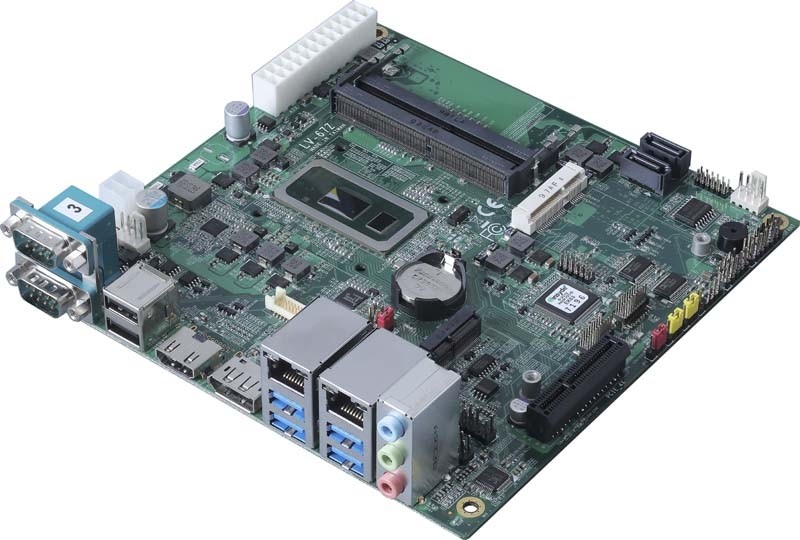

Mini-ITX Motherboard support Intel® Whiskey Lake U Processor

CPU: Intel® Whiskey Lake U Processor, FCBGA1528 package.

Chipset: Intel® Gen 9.5 integrated HD Graphic.

Memory: Two DDR4 SO-DIMM 2400MHz up to 32GB, support Non-ECC, unbuffered memory.

Display port interface: Onboard Display port connector.

LVDS interface: Onboard 18/24-bit single/dual channel LVDS connector with +3.3V/+5V/ +12V supply

HDMI interface: Onboard HDMI connector.

LAN Interface: 1 x Intel® Gigabit PHY LAN, 1 x Intel® Gigabit LAN.

Serial ATA: Support 2 x SATA3.

Audio: Realtek ALC262 HD Audio.

Internal I/O: 2 x SATA3, 4 x RS232, 2 x USB2.0, 1 x LVDS, 1 x LPC, 1 x LCD inverter, 1 x GPIO, 1 x Audio, 1 x PS/2, 1 x SMBus

Rear I/O: 1 x HDMI, 1 x DisplayPort, 2 x USB2.0, 4 x USB3.1 Gen2, 2 x LAN, 1 x Audio, 2 x RS232/422/485.

Extended interface: One PCI-E X 4 slot, one PCIe Mini card (Support mSATA), one M.2 (Key E).

GPIO interface: Onboard programmable 8-bit Digital I/O interface.

External Audio: Line-in, Line-out, MIC-in.

Power requirement: Standard 24-pin ATX power supply (20-pin is compatible) or 4-pin DC 9~35V full range support.
