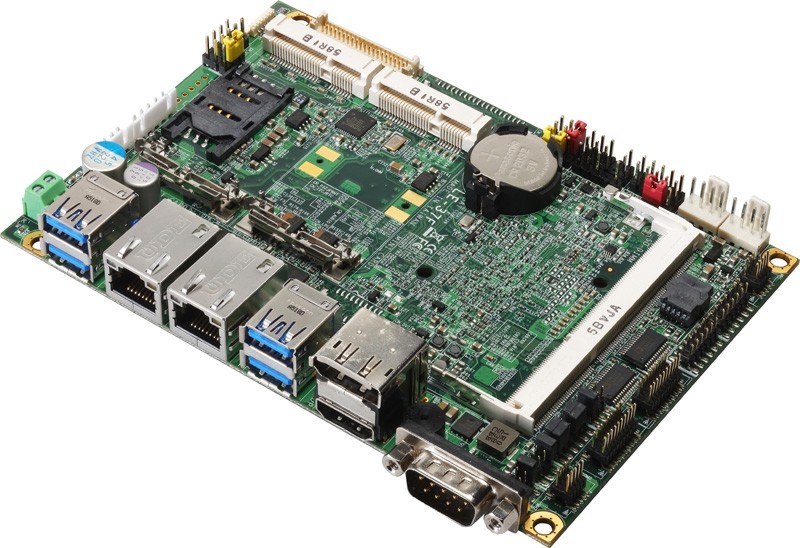

3.5 inch Miniboard with Intel® Braswell Series Processor

Part Nubber: LS-37F

₹24,000.00

Intel® Braswell Series  Processor.

Onboard Display port, HDMI , LVDS,
 HD Audio, Serial ATA3,
USB3.0 & 2.0, Gigabit LAN,

PCIE Mini card, mSATA

Qty:

Description

Details

CPU: Intel® Braswell Series Processor.
Memory: 1 x DDR3L (support 1.35V) 1600 SO-DIMM up to 8GB.
Integrated Graphics: Intel® Braswell SoC integrated HD Graphics.
Display port interface: Onboard Display port connector (Display port and optional CRT can’t be enabled simultaneously).
HDMI interface: Onboard HDMI connector.
LVDS interface: Onboard 18/24-bit dual channel LVDS connector with +3.3V/+5V/+12V supply.
LAN Interface: 2 x Intel® I210 Gigabit LAN.
Serial ATA: Support 2 x SATA3 with 600MB/s (6Gb/s) transfer rate, no support RAID 0,1. (CN_SATA-2 can not use when MINI CARD1 change to mSATA)
Audio: Realtek ALC262 HD Audio.
Internal I/O Port: 1 x PS/2, 4 x RS232, 1 x RS232/422/485, 1 x GPIO, 1 x Audio, 1 x SMBUS, 1 x LVDS, 1 x LCD inverter, 1 x LPC, 2 x USB 2.0, 2 x SATA3 and 1 x DC Out.
External I/O Port: 1 x RS232, 1 x HDMI port , 2 x RJ45 LAN ports, 4 x USB 3.0, 1 x Display port(Optional).
Extended interface: Two PCI-E Mini card slots (Only MINI CARD1 support mSATA), one SIM socket.
GPIO interface: Onboard programmable 12 pin-header, 8-bit Digital I/O interface.
Power Requirement: DC Input 6~30V.
