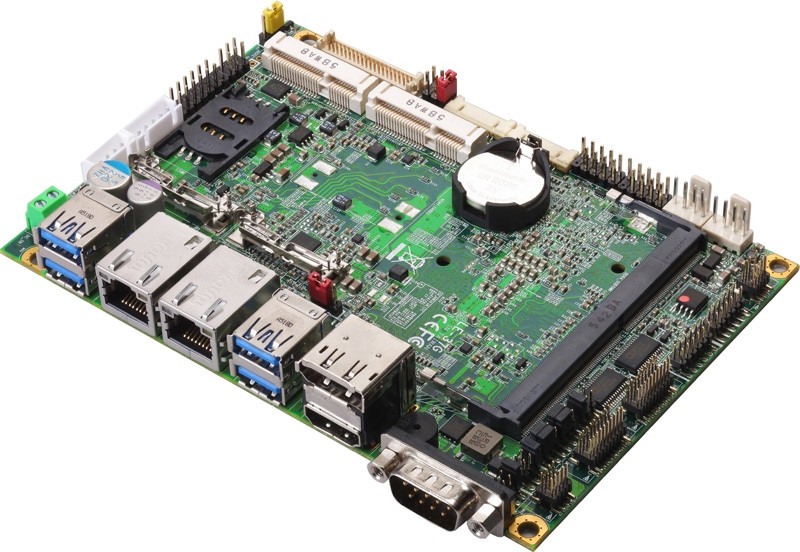

3.5 inch Miniboard with Intel® Skylake (6th/7th) U-series Processor

• CPU: Intel® Skylake 6th/7th generation Intel® Core™ U-series Mobile processor, FCBGA1356 package.

• Memory: One DDR4 1866/2133 MHz SO-DIMM up to 16 GB.

• Integrated Graphics: Intel® Gen 9 integrated HD Graphics.

• Display port interface: Onboard Display port connector (Display port and optional VGA or DVI-D can’t be enabled simultaneously).

• HDMI interface: Onboard HDMI connector.

• LVDS interface: Onboard 18/24-bit dual channel LVDS connector with +3.3V/+5V/+12V supply.

• LAN Interface: 1 x Intel® I210 Gigabit LAN and 1 x Intel® I219-LM Gigabit PHY LAN (Support iAMT11).

• Serial ATA: Support 2 x SATA3 with 600MB/s (6Gb/s) transfer rate, support RAID 0,1.

• Audio: Realtek ALC262 HD Audio.

• Internal I/O Port: 1 x PS/2, 4 x RS232, 1 x RS232/422/485, 1 x GPIO, 1 x Audio, 1 x SMBUS, 1 x LVDS, 1 x LCD inverter, 1 x LPC, 4 x USB 2.0, 2 x SATA3, 1 x DC Out, 1 x VGA for optional, 1 x DVI-D for optional.

• External I/O Port: 1 x RS232, 1 x HDMI port , 2 x LAN, 4 x USB 3.0, 1 x Display port for optional.

• Extended interface: Two PCI-E Mini card slots (Only MINI CARD2 support mSATA), one SIM socket.

• GPIO interface: Onboard programmable 12 pin-header, 8-bit Digital I/O interface.

• Power Requirement: DC Input 9~30V.

        Note:  Display port, VGA, DVI-D optional for one.
