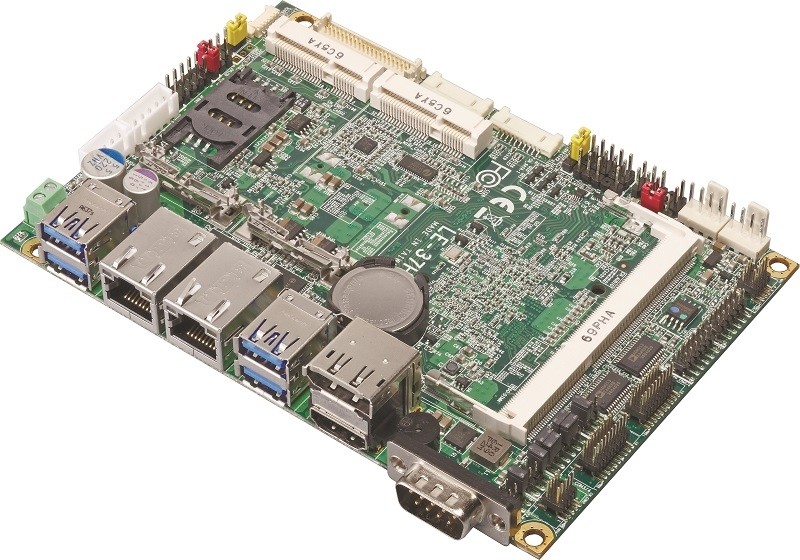

3.5 inch Miniboard with Intel® Apollo Lake Series Processor N3350/N4200/x7-E3950

CPU: Intel® Apollo Lake series Processor N3350 / N4200 / x7-E3950, FCBGA1296 package.

Memory: One DDR3L (support 1.35V) 1866 SO-DIMM up to 8GB

Integrated Graphics: Intel® integrated HD Graphics.

Display port interface: Onboard Display port connector

HDMI interface: Onboard HDMI connector.

LVDS interface: Onboard 18/24-bit single/dual channel LVDS connector with +3.3V/+5V/+12V supply.

LAN Interface: 2 x Intel® I210-AT Gigabit LAN

Serial ATA: Support 2 x SATA3 with 600MB/s (6Gb/s) transfer rate.

Audio: Realtek ALC262 HD Audio.

Internal I/O Port: 1 x PS/2, 4 x RS232, 1 x RS232/422/485,1 x GPIO, 1 x Audio, 1 x SMBUS, 1 x LVDS, 1 x LCD inverter, 1 x LPC, 2 x USB 2.0, 2 x SATA3, 1 x DC Out

External I/O Port: 1 x HDMI port , 2 x LAN, 4 x USB 3.0, 1 x RS232, 1 x Display Port(optional)

Extended interface: One PCI-E Mini card slot (Support mSATA), one SIM socket, one SD card.

GPIO interface: Onboard programmable 12 pin-header, 8-bit Digital I/O interface.

Power Requirement: Standard 24-pin ATX power supply or 4-pin DC Input 6~35V.
