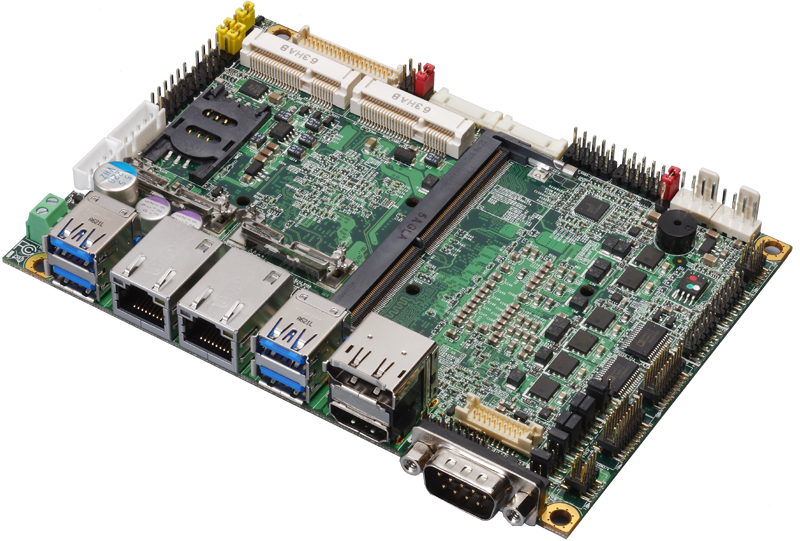

3.5 inch Miniboard with Intel® Skylake / Kaby Lake (6th/7th) H-series Processor and Xeon® E3-1505M v6 Mobile Processor

CPU: Skylake / Kaby Lake Intel®  6th / 7th Gen Core™ H-series and Xeon® E3-1505M v6 Mobile processor, FCBGA1440 package.

Memory: One DDR4 2133 MHz SO-DIMM up to 16 GB.

Integrated Graphics: Intel® Gen 9 integrated HD Graphics.

Display port interface: Onboard Display port connector.

HDMI interface: Onboard HDMI connector.

LVDS interface: Onboard 18/24-bit dual channel LVDS connector with +3.3V/+5V/+12V supply.

LAN Interface: 2 x Intel® Gigabit LAN.

Serial ATA: Support 2 x SATA3 with 600MB/s (6Gb/s) transfer rate, support RAID 0,1.

Audio: Realtek ALC262 HD Audio.

Internal I/O Port: 1 x PS/2, 4 x RS232, 1 x RS232/422/485, 1 x GPIO, 1 x Audio, 1 x SMBUS, 1 x LVDS, 1 x LCD inverter, 1 x LPC, 1 x CRT, 1 x DVI, 4 x USB 2.0, 2 x SATA3, 1 x DC Out,.

External I/O Port: 1 x RS232, 1 x HDMI port, 1 x Display port, 2 x LAN, 4 x USB 3.0.

Extended interface: Two PCI-E Mini card slots support mSATA, one SIM socket.

GPIO interface: Onboard programmable 12 pin-header, 8-bit Digital I/O interface.

Power Requirement: DC Input 9~30V.
