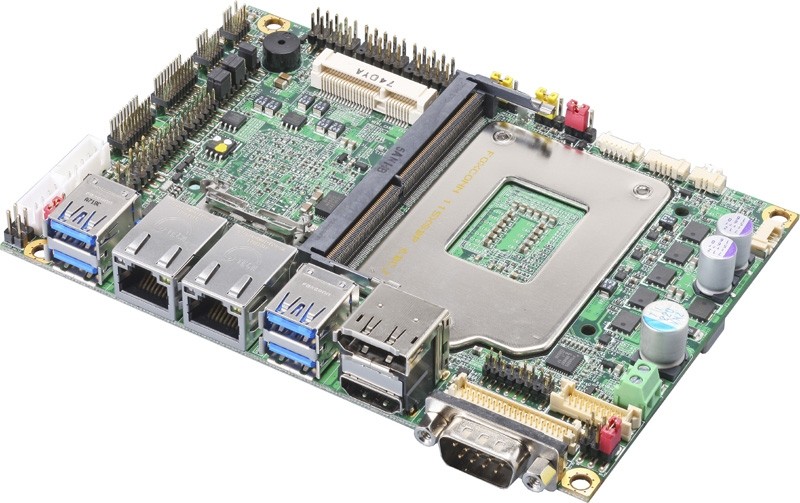

Details
CPU: Skylake / Kaby Lake Intel® 6th / 7th Gen Core™ S-series Processor and Xeon® E3-1200 v5 Processor in the FCLGA1151 socket. (TDP up to 45W)
Memory: One DDR4 1866 / 2133 MHz SO-DIMM up to 16 GB, support Non-ECC, unbuffered memory. (Xeon® E3-1200 v5 Product support ECC memory)
Chipset: Intel® C236 chipset.
Integrated Graphics: Intel® Core™ integrated HD Graphics 530 Technology.
DVI interface: 20-pin connector.
LVDS interface: Onboard 18/24-bit single/dual channel LVDS connector with +3.3V/+5V/+12V supply
Display port interface: Onboard Display port connector.
HDMI interface: Onboard HDMI connector.
VGA interface: 16-pin connector.
LAN Interface: 1 x Intel® Gigabit PHY LAN, 1 x Intel® Gigabit LAN.
Serial ATA: Support 2 x SATA3.
Audio: Realtek ALC262 High Definition Audio.
Internal I/O: 2 x SATA3, 4 x RS232, 1 x RS232/422/485. 4 x USB2.0, 1 x DVI, 1 x LVDS, 1 x VGA, 1 x LPC, 1 x LCD inverter, 1 x GPIO, 1 x Audio, 1 x PS/2, 1 x SMBUS.
Rear I/O: 1 x DisplayPort, 1 x HDMI, 4 x USB3.0, 2 x LAN, 1 x RS232.
Extended interface: One PCI-E Mini card (Support mSATA).
GPIO interface: Onboard programmable 8-bit Digital I/O interface.
Power requirement: DC input 9~35V.
