- Description
-
Details

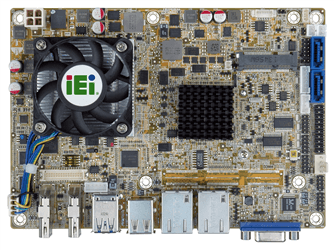

EPIC SBC supports Intel® 22nm 4th Generation Mobile Core™ i7-4700EQ processor (47W), with VGA/Dual HDMI/LVDS, Dual PCIe GbE, USB 3.0, PCIe Mini, PCIe/104, SATA 6Gb/s, Audio, iRIS-1010 and RoHS - Additional Information
-
Additional Information
Features ● 4th generation Intel® mobile Core™ i7/i5/i3 or Celeron® on-board processor ● IEI jumper-less function ● Triple independent display via dual HDMI+VGA, dual HDMI+LVDS or HDMI+LVDS+VGA ● DDR3/DDR3L 1600/1333 MHz SDRAM support up to 8 GB ● COM, USB 3.0, SATA 6Gb/s and audio support ● Intel® GbE LAN with Intel® AMT 9.0 support ● IEI One Key Recovery solution allows you to create rapid OS backup and recovery ● Support IPMI 2.0 with iRIS-1010 module Packing List 1 x NANO-QM871-i1 single board computer 1 x Audio cable 1 x CPU cooler 1 x Power cable 2 x RS-232 cable 1 x QIG (Quick Installation Guide) 2 x SATA with power cable kit Ordering Information NANO-QM871-i1-i7-R10 Diamensions 115 X 165 - Reviews
-
- Data Sheet
-
