Part Nubber: NANO-LX

₹0.00

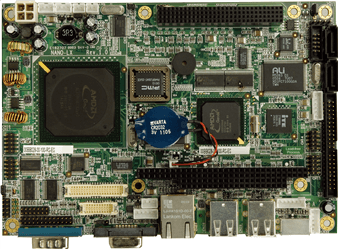

● EPIC form factor AMD LX800 processor embedded board with RoHS compliant
● DDR 400 MHz SO-DIMM SDRAM up to 1 GB
● VGA, 24-bit TTL, and 18-bit single-channel LVDS
● SATA RAID 0, 1, JBOD function support
● Complete I/O support with two SATA, IDE, PC/104-Plus and four USB 2.0
● IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Qty:

Add to Wishlist

Description

Details

EPIC SBC,AMD LX800 500MHz Processor,VGA/LVDS/TTL,LAN,SATA and Audio,RoHS

Additional Information

Additional Information

Features	● EPIC form factor AMD LX800 processor embedded board with RoHS compliant ● DDR 400 MHz SO-DIMM SDRAM up to 1 GB ● VGA, 24-bit TTL, and 18-bit single-channel LVDS ● SATA RAID 0, 1, JBOD function support ● Complete I/O support with two SATA, IDE, PC/104-Plus and four USB 2.0
Packing List	1 x NANO-LX single board computer 2 x RS-232 port cable 1 x Audio cable 2 x SATA cable 1 x IDE flat cable 44p/44p 1 x Mini iumper pack 1 x KB/MS Y cable 1 x Power cable 1 x QIG 1 x SATA power cable
Ordering Information	NANO-LX-800-R12
Diamensions	115 X 165
