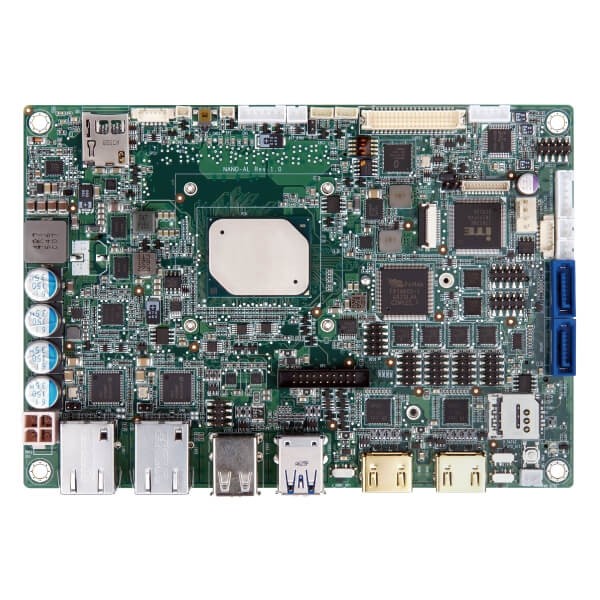

EPIC SBC supports Intel® 14nm quad-core Pentium® N4200 2.5GHz on-board SoC with Dual HDMI/LVDS/iDP, Dual PCIe GbE, USB 3.0, PCIe Mini, M.2, SATA 6Gb/s, COM, Audio and RoHS - Additional Information
-
Additional Information
Features ● EPIC SBC supports 14nm Intel® Pentium®/Celeron®/Atom™ on-board SoC supports dual-channel DDR3L SO-DIMMs. ● Triple independent display support. ● Wide range 9V~30V DC input design. ● M.2 B Key slot with SIM sockets for 3G/LTE expansion. ● COM, USB 3.0, SATA 6Gb/s, M.2, eMMC 5.0 and audio support. Packing List 1 x NANO-AL single board computer with Heatsink 1 x RS-232 cable 1 x SATA with power cable kit 1 x Power cable 1 x Screw set (for half-size PCIe Mini card) 1 x QIG Ordering Information NANO-AL-N2-R10** Diamensions : 115mm x 165mm - Reviews
-
