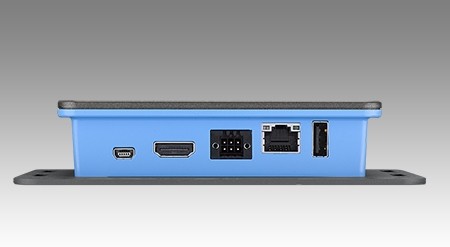

Box Computer
Part Nubber: UBC-220
₹0.00

  • Freescale ARM Cortex-A9 i.MX6 Dual Lite 1 GHz high performance processor

  • Onboard DDR3 1 GB, 4 GB eMMC Flash

  • Supports OpenGL ES 2.0 and OpenVG 1.1 hardware accelerators, full HD 1080p video codec

  • HDMI 1920x1080

  • Single Channel 18/24 bit LVDS

  • 1 4-wire UART

  • 1 USB 2.0, 1 USB OTG client

  • 1 10/100/1000 Mbps Ethernet; 1 SD Slot

  • Dual mini-PCIe for WIFI/3G support

  • Multiple OS support in Linux/Android

OR
Description

Details

Freescale i.MX6 RISC Compact Box
Additional Information

Additional Information

Features ƒ NXP ARM® Cortex®-A9 i.MX6 Dual Lite 1 GHz processor ƒ Onboard DDR3 1GB, 800MHz ƒ 4 GB eMMC Flash Memory ƒ Dual display HDMI 1920x1080P and single channel 18/24 bit LVDS ƒ Rich I/O with 1 4-wire RS-232, 1 USB 2.0, 1 USB OTG ƒ Dual mini-PCIe slots for Wi-Fi/Cellular module support ƒ Low power consumption, fanless design ƒ Supports wall mounting, 10x10 VESA and DIN rails
Packing List 1652006794-01 6-pin terminal block
Ordering Information UBC-220DL-MDA1E
Diamensions 142 x 101 x 30 mm
