Box Computer

Box Computer

More Views

Box Computer
Part Nubber: EPC-R6410
₹0.00

  • NXP ARM Cortex-A9 i.MX6 Dual/Quad 1GHz high performance processor

  • On board DDR3 1066MHz 1GB/2GB memory and 8GB EMMC NAND flash

  • Supports Dual Display: VGA/HDMI

  • Supports 1 x mini-PCIe, 4 x serial ports, 6 x USB, 1 x M.2 socket,8 x GPIO, 1 x CAN

  • Low power consumption, fanless design

  • Supports Linux and Android BSP

OR
Description

Details

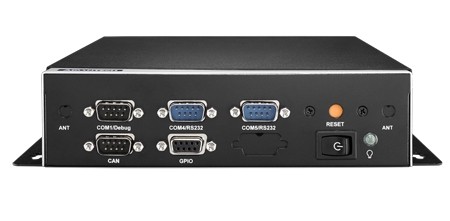

EPC-R6410 is the RISC based box computer which integrated NXP i.MX6D/Q Cortex-A9 1.0GHz high performance processor. It is designed for the applications that require high performance and rich I/O but low power consumption. It supports dual display via HDMI and VGA up to 1080p, 1 Gigabit Ethernet, 6 USB 2.0 and 4 serials, as well as mini-PCIE for 4G/3G and M.2 for... More
Additional Information

Additional Information

Features ƒ NXP ARM Cortex-A9 i.MX6 Dual/Quad 1GHz high performance processor ƒ On board DDR3 1066MHz 1GB/2GB memory and 8GB EMMC NAND flash ƒ Supports Dual Display: VGA/HDMI ƒ Supports 1 x mini-PCIe, 4 x serial ports, 6 x USB, 1 x M.2 socket,8 x GPIO, 1 x CAN ƒ Low power consumption, fanless design ƒ Supports Linux and Android BSP
Packing List 96966410000/10 NXP i.MX6D/Q 1GHz computing board 1960074545N001 Wall mount
Ordering Information EPC-R6410CD-PAA1E
Diamensions 200 x 230 x 50 mm
Reviews
Data Sheet
PDF
