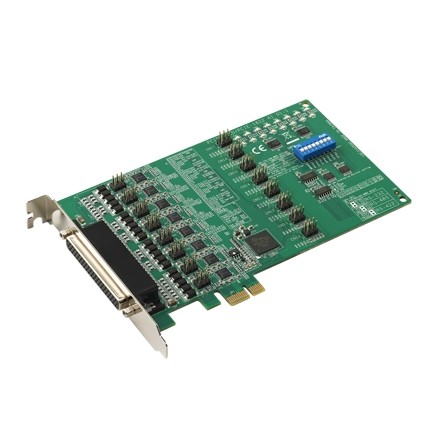

PCIE-1620 is an 8-port RS-232, and PCIE-1622 is an 8-port RS-232/422/485 PCI Express communication cards that are compatible with the PCI Express x 1 specification. The cards provide eight EFT protected RS-232/422/485 ports up to 2,500 VDC, and have many functions such as high transmission speed of 921.6 kbps; either eight independent RS-232 ports or eight independent RS-232/422/485 ports which comes with high-performance PCIe958 UARTs with 128-byte FIFO to reduce CPU load. Thus, the PCIE-1620/ PCIE-1622 are especially suitable for making your system reliable in multitasking environments. - Additional Information
-
Additional Information
Features - PCI Express bus 2.0 compliant
- Speeds up to 921.6 kbps for extremely fast data transmission
- Supports any baud rate setting
- 8 x RS-232 or RS-232/422/485 ports
- XR17V358 UART with 256-byte FIFOs
Packing List OPT8C-AE 1 x DB62 to 8 x DB25 cable, 1 m (for PCIE-1620A-BE and PCIE-1622B-BE) OPT8H-AE 1 x DB62 to 8 x DB9 cable, 1 m (for PCIE-1620A-BE and PCIE-1622B-BE) OPT8J-AE 1 x DB78 to 8 x DB9 cable, 1 m (for PCIE-1622C-AE) Ordering Information PCIE-1620A-BE PCIE-1622B-BE PCIE-1622C-AE Diamensions 168 x 111 mm (6.6" x 4.4") - Reviews
-
