Details

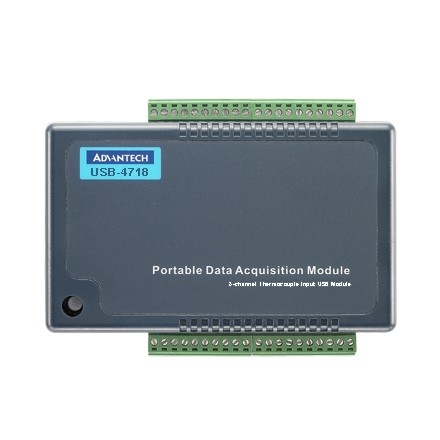

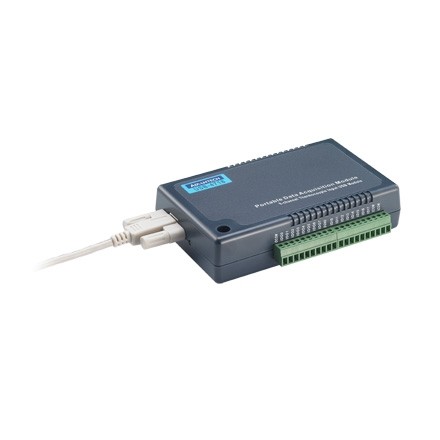

The USB-4700 series consists of true plug & play data acquisition devices. No more opening up your computer chassis to install boards-just plug in the module, then get the data. It’s easy and efficient. USB-4718 offers 8 thermocouple inputs with 16-bit resolution, up to 0.1% input range accuracy. Portable design makes the USB-4718 suitable for the field research. Also the input channels can be set separately make it possible handling multiple types of sensor with only one USB-4718 module.
Reliable and rugged enough for industrial applications, yet inexpensive enough for home projects, the USB-4718 is the perfect way to add measurement and control capability to any USB capable computer. The USB-4700 series is fully plug and play and easy to use. It obtains all required power from the USB port, so no external power connection is ever required. - Additional Information
-
Additional Information
Features Supports USB 2.0 Supports voltage, current, and thermocouple inputs Bus powered 8 x Thermocouple input channels 2,500 VDC isolation Supports 4 ~ 20 mA current input Detachable screw terminal on modules 8-ch isolated digital input and 8-ch isolated digital output Suitable for DIN rail mounting 1 x Lockable USB cable included for connection security
Packing List 1960004544 Wall mount bracket 1960005788 VESA mount bracket Ordering Information USB-4718-AE Diamensions 132 x 80 x 32 mm (5.2" x 3.15" x 1.26") - Reviews
-
